TTS Pete Cornish G2 (v2.00)

Pedal Capture

NAM

36

2

thetonescientist's avatar

thetonescientist

3 months ago

Description

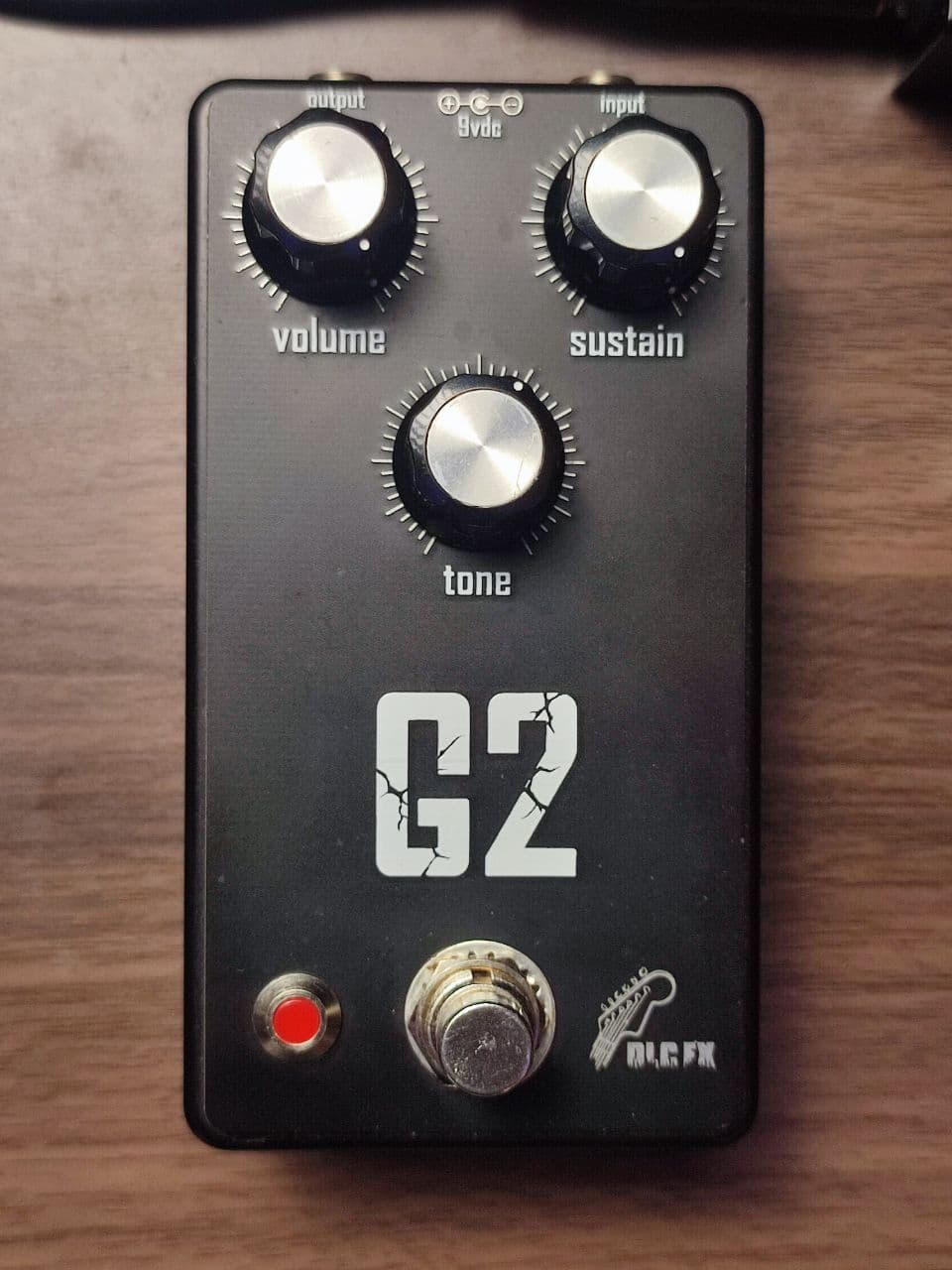

A Big Muff that doesn't sound like a Big Muff UPDATE 2026-03-30: redone all captures due to a strange noise/distortion on the decay in some of the old ones. Clone of the Pete Cornish G-2 based on the schematic traced by Aion FX It has four D9E diodes with a Vf comprised between 0.21 and 0.23 Contains metadata for levels calibration Captured using TTSv10 input file to reduce aliasing ESR: 0.01 or below Pedal settings in the filename: S=Sustain T=Tone V=Volume 36 captures that cover the entire range of the Sustain and Tone knobs in 20% steps (positions 0, 2, 4, 8 and 10), Volume instead was on 10 on all captures, since it doesn't affect the pedal's tone you can use the level control on the NAM plugin/hardware loader in place of it. When using the calibration, consider 0 dB on the output level of the plugin as the max volume setting on the pedal, iow you can turn it down but don't turn it up if you want to keep it accurate to the real pedal. Little demo at minute 20:47 of the video

Makes and Models

Pete Cornish G-2
https://shop.thetonescientist.com
https://youtube.com/@ToneScientist

Tags

bass fuzzbass overdrivebig muffbluesdavid gilmourfuzzgermaniumnamoverdrivepink floydrock

Preview

Model
IR
Input

Powered by

Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.004

A2-LiteESR: 0.0171

500 Epochs

Convert

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0042

A2-LiteESR: 0.0222

500 Epochs

Convert

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0042

A2-LiteESR: 0.0219

500 Epochs

Convert

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0039

A2-LiteESR: 0.02

500 Epochs

Convert

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0051

A2-LiteESR: 0.0151

500 Epochs

Convert

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0041

A2-LiteESR: 0.0142

500 Epochs

Convert

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0023

A2-LiteESR: 0.0125

500 Epochs

Convert

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0026

A2-LiteESR: 0.0114

500 Epochs

Convert

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0024

A2-LiteESR: 0.0146

500 Epochs

Convert

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0022

A2-LiteESR: 0.026

500 Epochs

Convert

Captured on

Tone3000 - NAM Captures and IRs

2 Comments

Share your thoughts...
@username to mention • Ctrl+Enter to submit
markstudios
I don't even like fuzz XD, but there are paid pedal captures that have fewer settings than this ;) Thank you for remembering that pedal captures need input AND output calibration!!
1
