Complex NAM 0.12.2 capture
[C10] = Complex, 10 Epochs = ESR ~ 0.01
[C25] = Complex, 25 Epochs = ESR 0.003 - 0.008
[C100] = Complex, 100 Epochs = ESR 0.001 - 0.004
[C200] = Complex, 200 Epochs = ESR as low as 0.0008 (this is about 1/2 of the validation ESR, so theoretically about as perfect as it can get!)
[C300] = Complex, 300 Epochs, trained with a custom fork of NAM.
[RyH300] = REVyHi, 300 Epochs, trained with a custom fork of NAM.
[RyS300] = REVySTD, 300 Epochs, trained with a custom fork of NAM.
[RxS300] = REVxSTD, 300 Epochs, trained with a custom fork of NAM.
[STD300] = STANDARD, 300 Epochs, trained with a custom fork of NAM.
Additional model architectures included:
STANDARD = Baseline, "normal" NAM Architecture, should play nice with most hardware, about 290 kB.
REVxSTD = Basically the same requirements as Standard, but sometimes better quality, about 290 kB.
REVySTD = Similar to REVxSTD, but possibly better, a bit more demanding, slightly larger file size.
REVyHI = Close to COMPLEX in terms of accuracy, about 480 kB.
COMPLEX = The absolute highest NAM quality! You may need a more powerful computer, and some hardware will not be able to handle this. I recommend using a less demanding Architecture for tracking, and then using COMPLEX for offline rendering. Size is about 1900 kB.
Signal chain:
Ableton Live 12.3 Suite
ZOOM UAC-232 32-bit float 48 kHz 100% gain
ART Dual RDB 100% gain

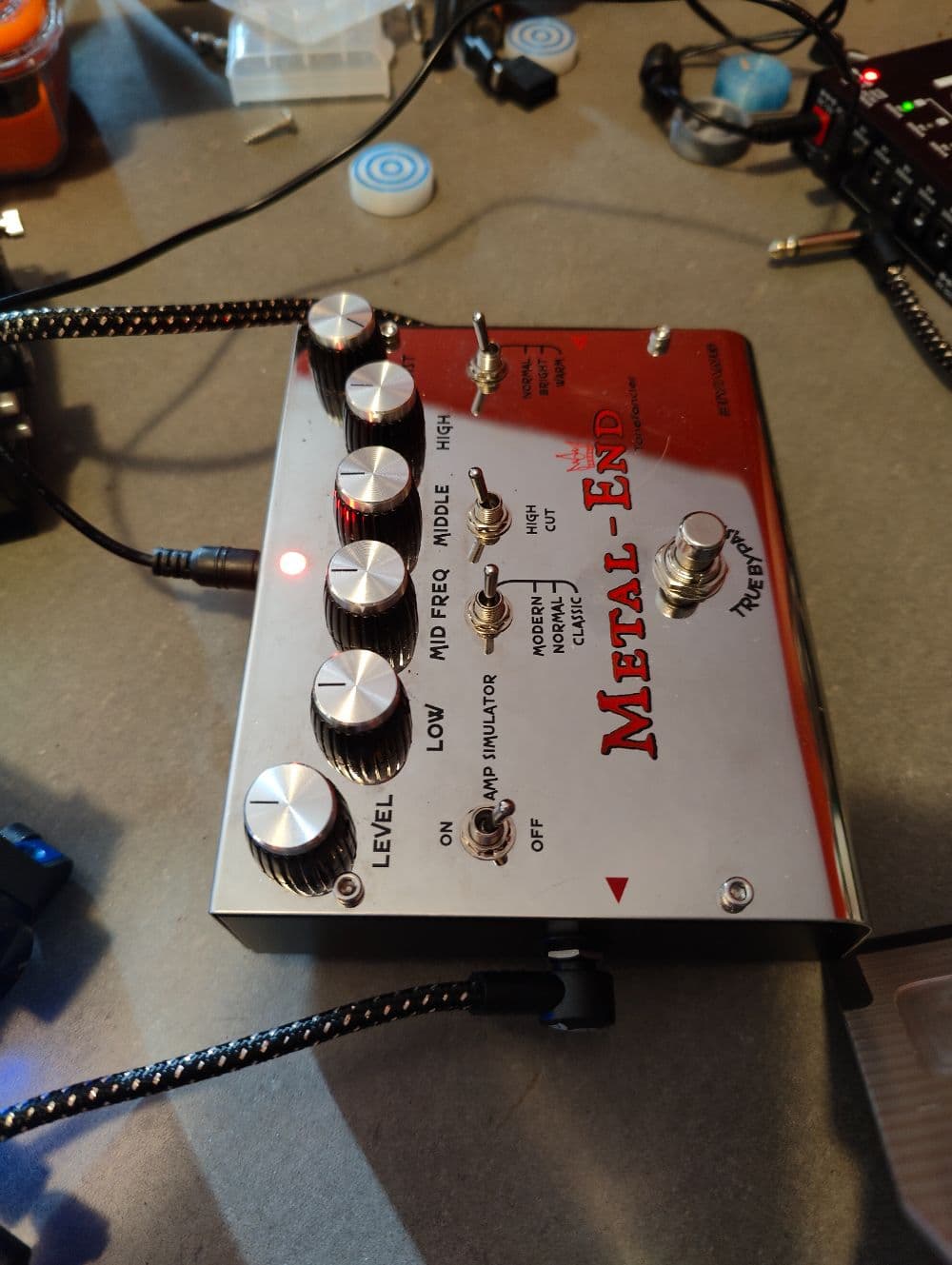

Biyang Metal-End King Tonefancier (aka AKAI Deluxe Distortion)
ZOOM UAC-232 32-bit float 48 kHz input level 12
Ableton Live 12.3 Suite
Converted to 24-bit integer 48 kHz mono and normalized to -3 dBFS TPL via dBpowerAmp.
Please note that some of the first files I uploaded were normalized to -3 dBFS TPL, while later files were not! This is my first NAM capture/training project, and I initially did not own a multimeter... mea culpa! Any inconsistencies will probably be obvious, and you may use the following information to calibrate things as needed:
ZOOM UAC-232 100% output, using a sine wave input at approximately 1.00 kHz measuring just barely under 0 dBFS TPL at the DAW output (double checked with YouLean Loudness Meter 2 Pro) measures 3.518 Volts RMS, which converts to 13.14 dBu. I used an AstroAI TRMS-6000 multimeter, and triple-checked the measurements.
Computer specs:
ROG Z13 ACRNM
i9 13900H
32 GB LPDDR5
Nvidia GTX 4070 Mobile
Windows 11 Pro
You can use my fork of NAM to make your own "Hyper Accuracy" aka "COMPLEX" architecture NAM profiles, as well as "REVxSTD", "REVyHI", and other Architectures:
https://github.com/sskalnik/neural-amp-modeler
