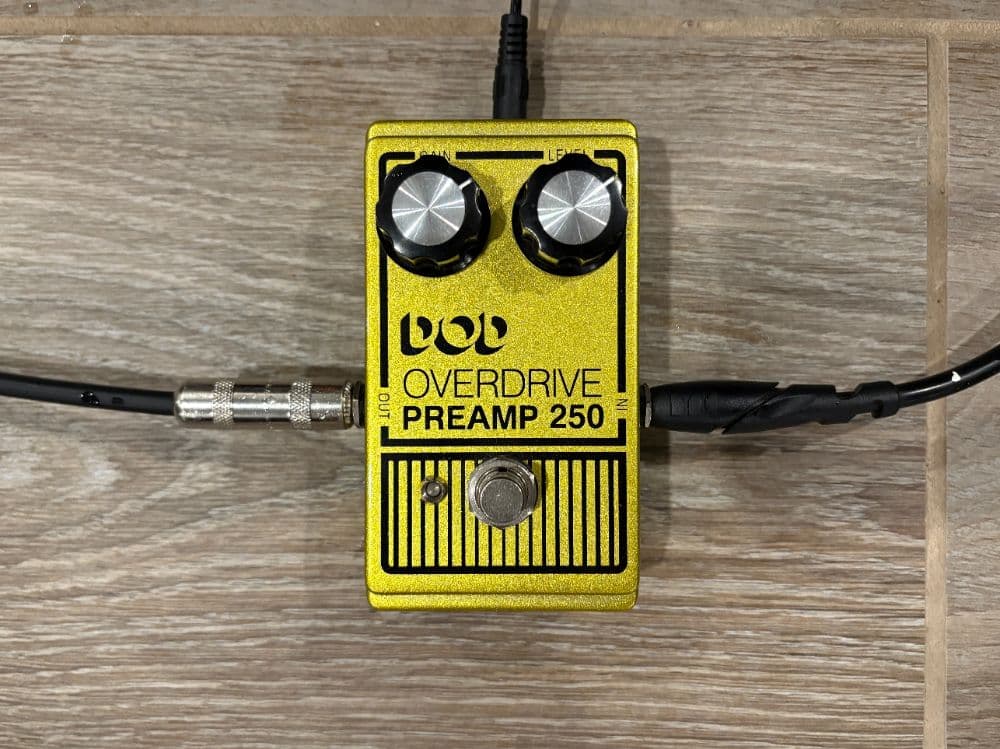

DOD 250 - 2013 Reissue

These captures are of my DOD 250 2013-era reissue. Steinberg UR824 Line Out - DIYRE Line2Amp at 11.5dBu DOD 250 - Steinberg UR824 In at 11.5dBu My input and output were set at 11.5dBu so I could interface with my amp captures or Helix Native without adjustment. I recommend setting the NAM Output mode to Raw or Calibrated if you use the auto input calibration feature. Settings approximated in clock position in the following order: (G)ain (L)evel I evaluated settings using my Vox AC15C1 normal channel captures set a bit clean. The captures were made with the TTSV10 input file as a recent experiment with Wet-Dry training. The TTSV10 input is an experimental training file shared to the NAM community from The Tone Scientist (https://shop.thetonescientist.com/) These were trained with the Standard Architecture at 1000 Epochs. 4/5/26 - The following captures were added: DOD 250 G-3 L-10 TTSV10 DOD 250 G-4 L-10 TTSV10 DOD 250 G-5 L-10 TTSV10 DOD 250 G-6 L-10 TTSV10 DOD 250 G-7 L-10 TTSV10 DOD 250 G-8 L-10 TTSV10 DOD 250 G-10 L-10 TTSV10 DOD 250 G-8 L-8 TTSV10 DOD 250 G-10 L-8 TTSV10 Slightly different return level than the first batch (by +0.2dB), but should not be noticeable. New Hardware Chain used: RME UCX II Line Out - United Studio Technologies Replay Box at 11.5dBu DOD 250 - RME UCX II Instrument In at 11.7dBu
