Esp32

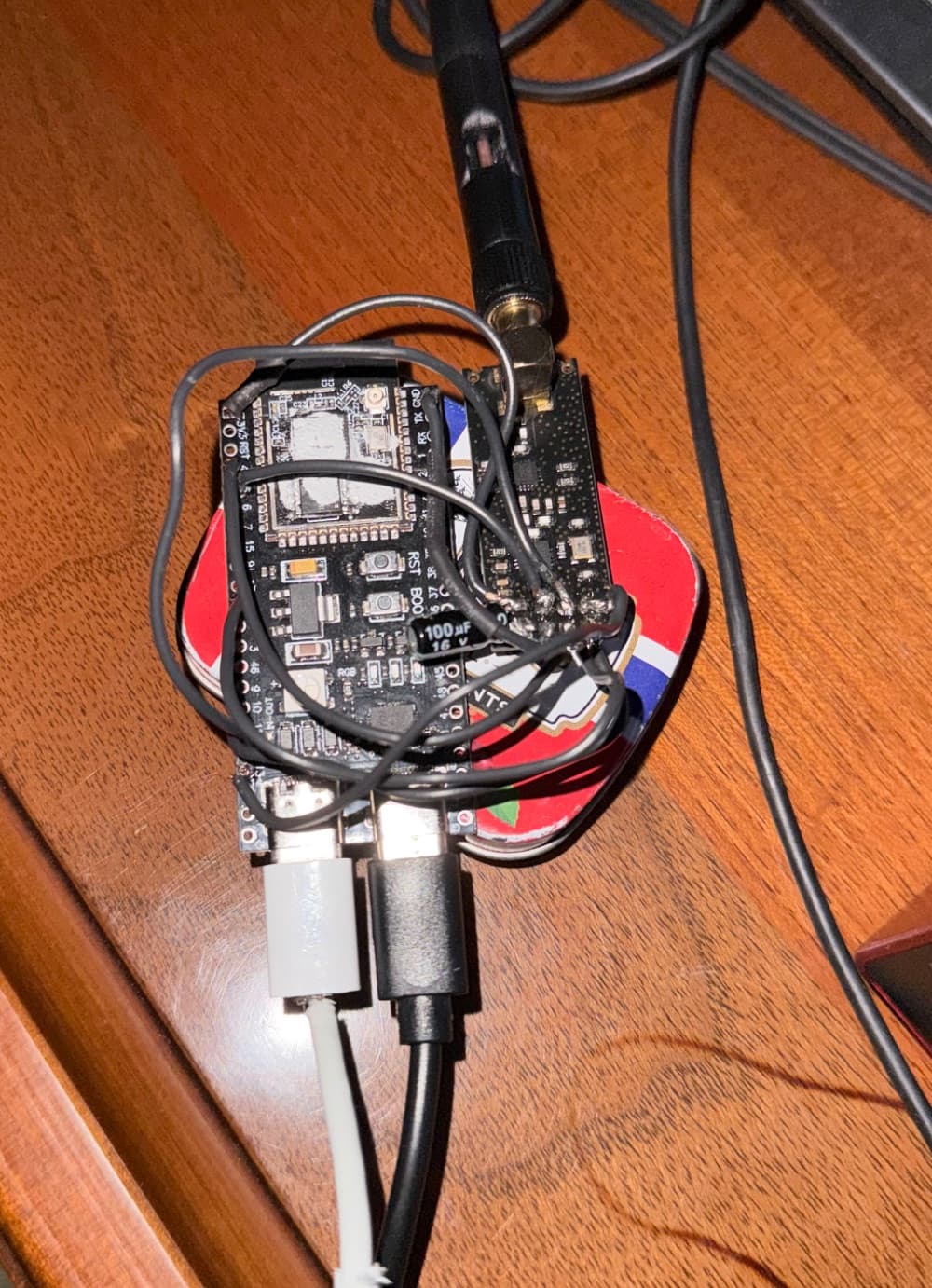

Full-rig capture of a software amp simulator running on an ESP32-S3 microcontroller (4x oversampled, 48 kHz): amp, cabinet impulse response and, where listed, an overdrive/distortion pedal in front. Custom DSP firmware for the ESP32-S3. not a commercial plugin or someone else's preset. The models were assembled from open sources: example schematics from LiveSPICE (MIT) and circuits described in the literature. JTM-style: 01, 02, 03, 04 (4 tones) 5150-style: 06, 07, 08 (3 tones) Chainsaw: 10, 11, 12 (3 tones) 5150 (circuit-based): 13, 14, 15, 16, 17, 18 (6 tones) jtm crunch 1960A DESCRIPTION: A JTM45-style British amp (two ECC83 stages, tone stack, EL34 push-pull power stage with supply sag), into a Marshall 1960A 4x12 impulse response. Amp knobs: Gain 7.0, Bass 6.0, Mid 5.0, Treble 5.0, Presence 5.0, Master 4.0.
