Kay Model 703-C Combo - 1964

Amp + Cab Capture

NAM

tenfiftyfour's avatar

tenfiftyfour

1h

Description

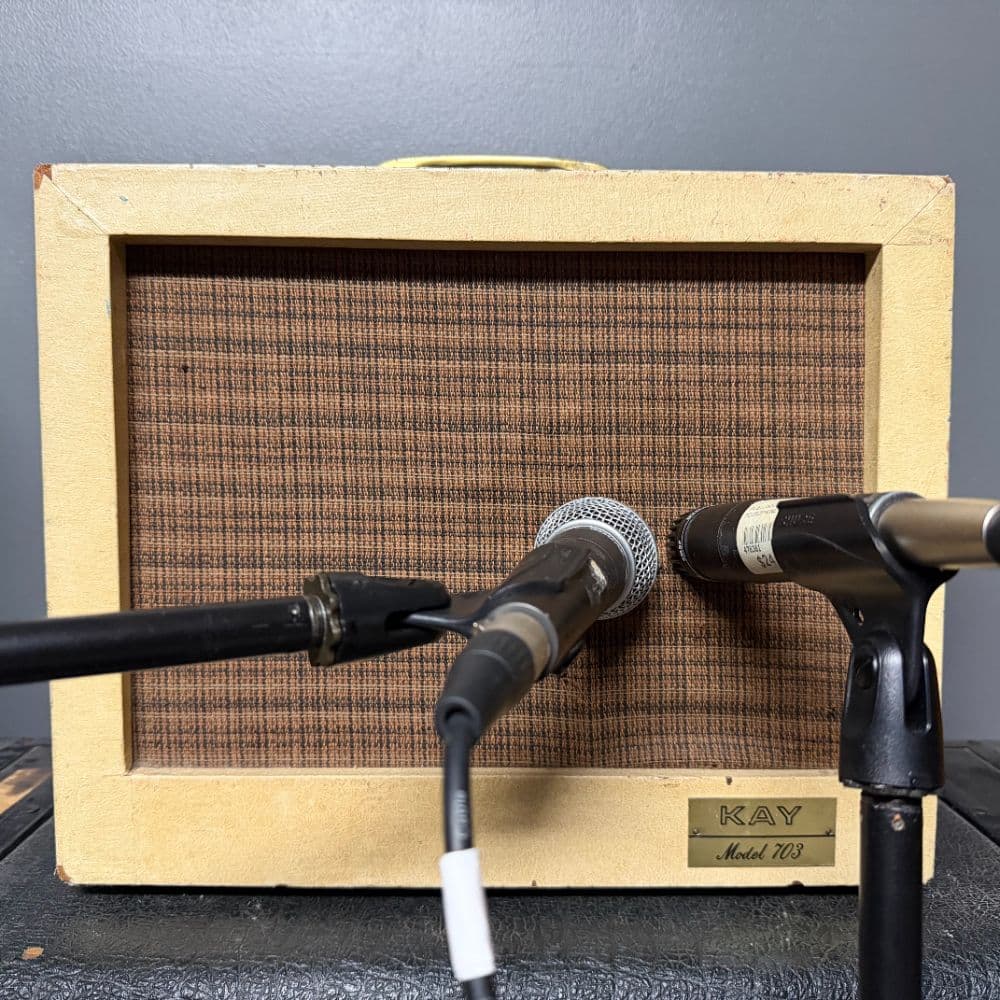

Kay model 703-C combo amp from 1964. Original Oxford 8" speaker. Tubes: Preamp: 18GD6A Power: 60FX5 Rectifier: 36AM3B One volume and one "control" knob, which acts as the on/off switch. Three input jacks with different grid stopper resistors: 1: 10k 2: 22k (stock) 3: 47k Captures recorded through input 2. Some modifications: replaced filter caps, removed "death cap" and added Triad FD8-120 isolation transformer. ***NOTE: I'm having a hard time getting quality captures at higher volumes, but I'll keep trying.*** Signal chain: Focusrite Scarlett 2i2 > Palmer Trave > Kay 703 > Marshall 4x12 > SM57/SM58 > Scarlett 2i2

Preview

Model
IR
Input

Powered by

NAM Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.0021

A2-LiteESR: 0.0054

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0019

A2-LiteESR: 0.0071

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0017

A2-LiteESR: 0.0056

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0017

A2-LiteESR: 0.004

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0018

A2-LiteESR: 0.0051

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0014

A2-LiteESR: 0.0047

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs
