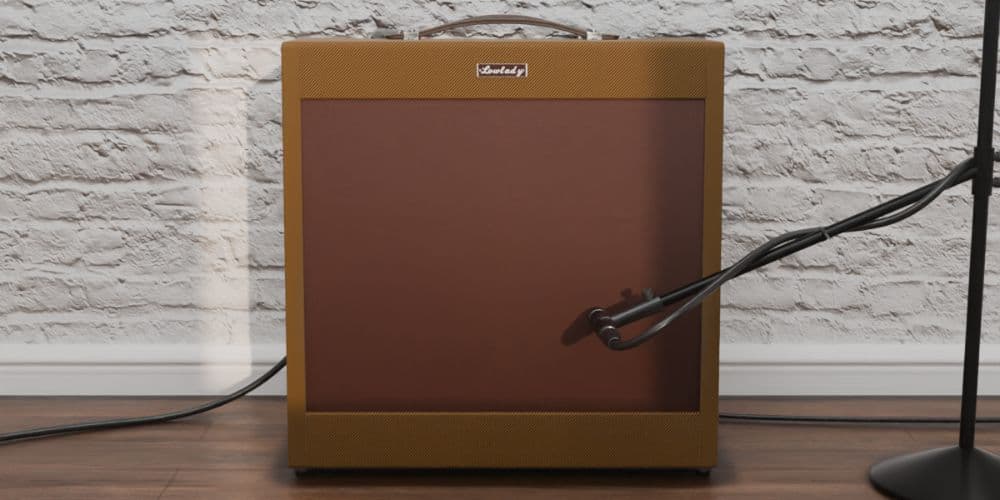

Lowlady 5F6A

A 1958 Fender Bassman 5F6-A circuit featuring a mixture of General Electric and Tung-Sol tubes. A GE 12AY7 Triode split across V1A (Normal), and V1B (Bright) channels into the volume circuit, then onto a GE 12AX7 V2A Driver and a V2B Cathode Follower feeding into a Treble + Bass + Middle tone stack, then onto a GE 12AX7 Long-Tail Pair Phase Inverter stage split across V3A and V3B; V3B having the Global Feedback Loop feeding into it. The poweramp section has a pair of Tung-Sol 5881 beam power pentodes feeding a Triad 45429 Output Transformer powering four Jensen P10R Alnico speakers. Since I have the TriodeX Dynamic Cab enabled you will also hear a virtual RCA Type 77-DX microphone with the cabinet in a small virtual studio space.
