Lusitano 50

Amp Head Capture

NAM

1
tostes's avatar

tostes

1mo

Description

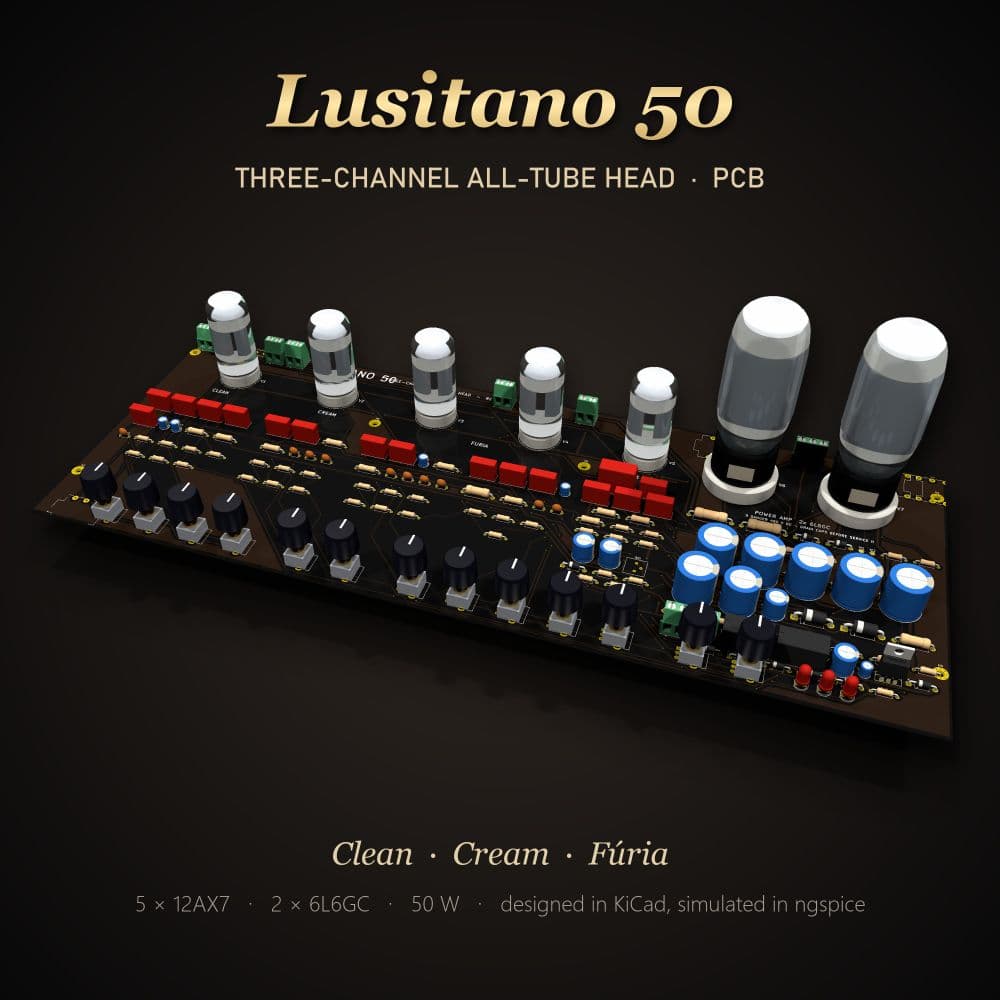

Lusitano 50 — Three-Channel Tube Head (Clean / Cream / Fúria) The Lusitano 50 is an original 50 W, three-channel all-tube head designed from scratch: 5× 12AX7 preamp and 2× 6L6GC in class AB1 with fixed bias. These are head-only NAM captures, so pair them with your favourite cab IR. CLEAN: warm, round and punchy, with a firm low end and a sweet edge when you dig in. The tone stack sits before the gain stage, boutique-style, and the power amp only starts to bloom on hard attacks. CREAM: smooth, touch-sensitive overdrive in the spirit of the classic ODS-style and modern “signature” boutique amps. It is built on top of the clean channel through two unbypassed triode stages, with a tight low cut and a bright, vocal top. Roll back your guitar volume and it cleans up. FÚRIA: modern high gain with four cascaded stages, including a cold-biased clipper and a cathode follower driving its own tone stack. The low end stays tight, the mids bite, and an anti-fizz filter keeps the top smooth. How it was made: the amp exists as a full circuit design (KiCad schematic). Every capture was reamped through a component-level SPICE simulation (ngspice) of the complete amplifier, That includes: the real power supply with sag; the long-tail phase inverter with global negative feedback and Presence; the 6L6GC power section and output transformer; a reactive speaker load. Use: Head only, with no cab in the capture. Add an IR: a 2x12 or 4x12 with V30s or Creambacks works great. Input level: 8.7 dBu. 0 dBFS = 3 V peak at the amp input. Levels are matched between the captures. Designed in Guimarães, Portugal.

Makes and Models

Lusitano 50

Preview

NAM CaptureTone on
Mayer - GuitarMesa 412 OS

NAM Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.0016

A2-LiteESR: 0.0075

200 Epochs

Dry/Wet

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0007

A2-LiteESR: 0.0037

200 Epochs

Dry/Wet

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0015

A2-LiteESR: 0.0043

200 Epochs

Dry/Wet

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0012

A2-LiteESR: 0.0027

200 Epochs

Dry/Wet

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0009

A2-LiteESR: 0.003

200 Epochs

Dry/Wet

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0016

A2-LiteESR: 0.009

200 Epochs

Dry/Wet

cal.

Captured on

Tone3000 - NAM Captures and IRs

1 Comment

Share your thoughts...
@username to mention • Ctrl+Enter to submit
metalheart's avatar
Interesting, I'll give this a go.
0

License: T3K

Users may download and use the data file in software and publish the resulting outputs without royalties or restrictions. However, they may not upload, republish, or distribute the data file without the author's permission.

More Tones From @tostes

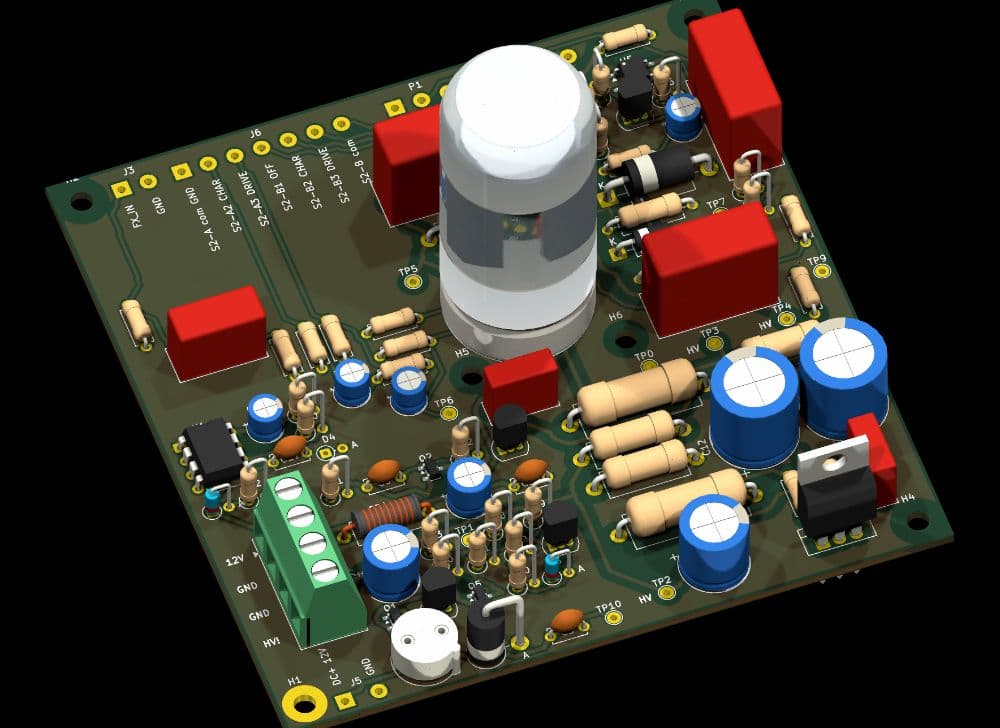

TostesValve
