Mesa Dual Rectifier MW Red Modern - Mesa 4x12 - Full Rig

Name: Mesa Dual Rectifier MW Red Modern - Mesa 4x12 - Full Rig
Brand: TONE3000
SKU: TONE3000-mesa-dual-rectifier-mw-red-modern-mesa-4
Availability: InStock

Amp + Cab Capture

NAM

68 Models

OutmodedElectronics

3mo

Description

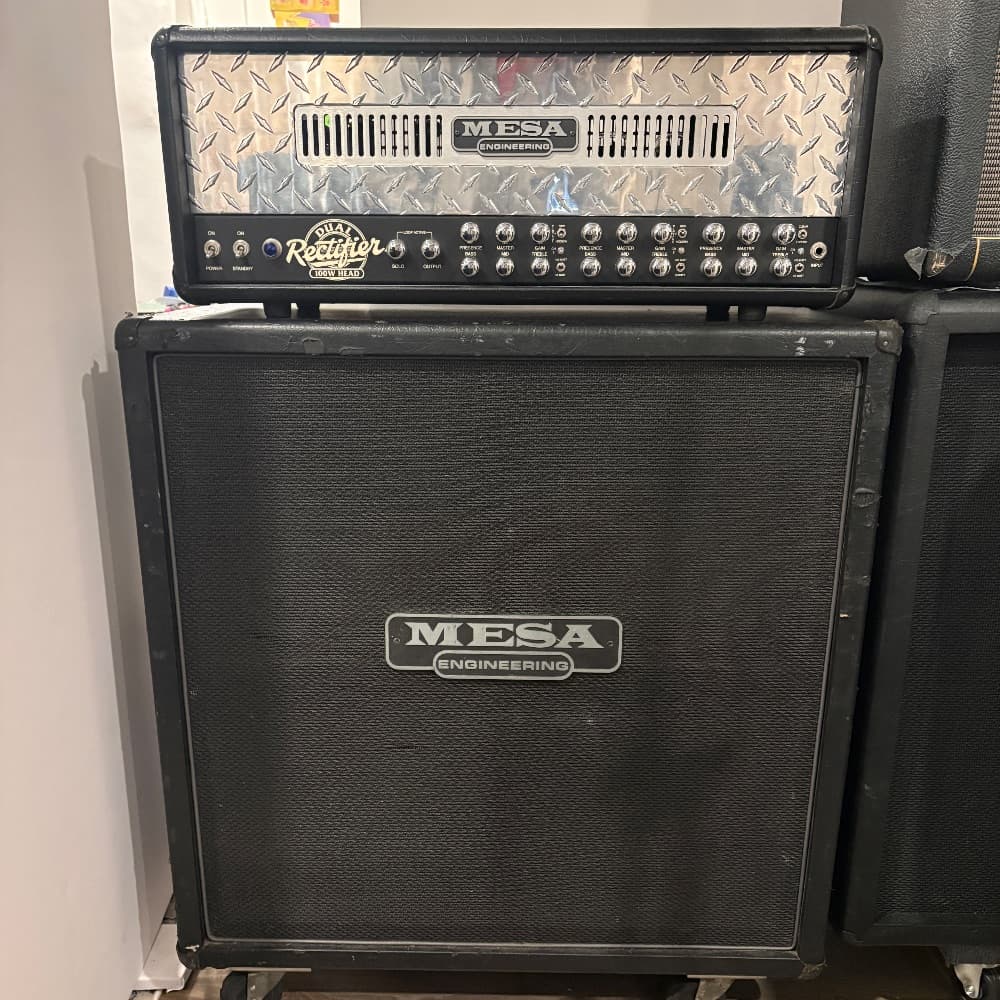

Update - 6/5/26 - Shortened file names. I made Full Rig captures of my Mesa Boogie Dual Rectifier Multi-Watt’s Red Channel Modern Mode into a Mesa Traditional 4x12 with V30s. These Full Rigs were recorded simultaneously with my Amp Head captures (see Linked Tones). I was trying to impart the Mesa 4x12’s impedance curve onto the captures of the Dual Rectifier. Luckily, the captures got converted to A2. I recorded 6 settings through the Mesa 4x12 with an SM57. I wanted to know how each individual V30 in the cab sounded with the cab. The 6 settings are as follows: 1 - MV-2 P-2 T-5 M-4 B-2 2 - MV-2 P-3 T-6 M-4 B-3 3 - MV-2 P-3 T-6 M-6 B-3 4 - MV-2 P-4 T-4 M-3 B-4 5 - MV-2 P-5 T-4 M-5 B-3 6 - MV-2 P-6 T-0 M-7 B-3 I took Setting 1 and boosted with a few pedals. The filenames reference the following abbreviations: TLDX - Wampler Tumnus Deluxe SD1 - Boss SD-1 OD808 - Maxon OD808 TMB-66, TMB-73 - Keeley Time Machine Boost 1966 and 1973 modes Speaker Positions are LL – lower left, LR – lower right, UL – upper left, UR – upper right The Upper and Lower Left speakers are a bit brighter compared to the thicker sounding speakers on the right. The SM57 mic positions are as follows: a - 0.50" (~1.3cm) from the cap center, on the grille b - 0.75” (~1.9cm) from the cap center, 0.50" (~1.3cm) off the grille Boosted captures use only the ‘a’ mic position because I ran out of patience making the pack. I trained the boosted captures after A2 came out, so I don't have the A1 versions of those rigs. However, it should be easy enough to add a boost pedal in front of the captures if you are using A1. All A1 captures trained at 1000 Epochs using the TTSV10 input file, from The Tone Scientist. https://shop.thetonescientist.com/ I had mistakenly deleted the A1 captures (Oops!), but had them saved on my computer. Input/output calibration metadata for 11.5dBu send/11.7dBu return was filled in during TONE3000 training. Full Rig Signal Chain: RME UCX II Line Out – United Studio Technology Replay Box at 11.5dBu - Mesa Dual Recto MW - Suhr Reactive Load Thru - Mesa Traditional 4x12 Cabinet – Celestion V30 - Shure SM57 - CAPI VP28 - RME UCX II Line In at 11.7dBu I think the Full Rigs sound a little different than the Amp Head+IR combo. For Sonicake Pocketmaster Users: When importing a A1 Full Rig Capture into the SPM, I had to remove some low end. I used the Bass EQ, and set both 50Hz and 120Hz frequencies to -10. Global Input Level was set to 0dB when I was comparing. Not the exact sound but close enough.

Makes and Models

CAPI VP28 Celestion Vintage 30 Mesa Boogie Dual Rectifier Multi-Watt Mesa Traditional 4x12 Shure SM57

Linked Tones

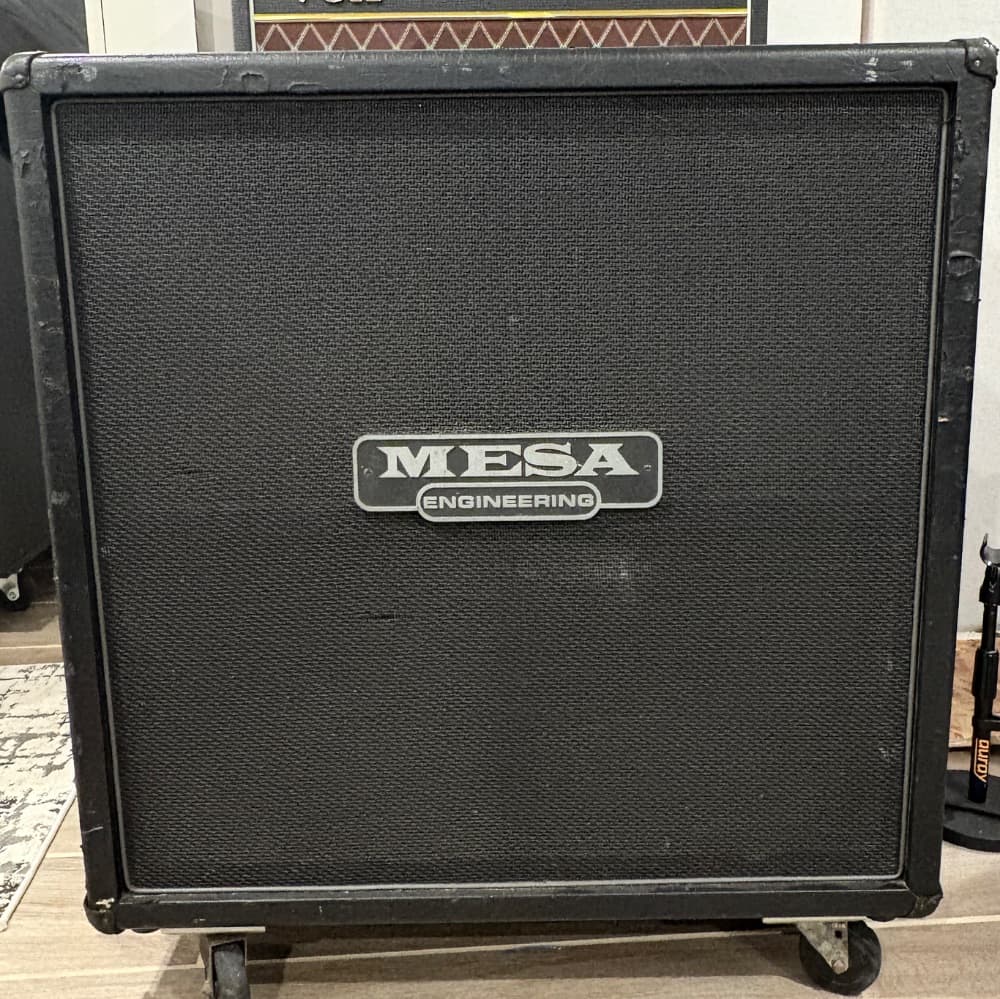

Celestion Vintage 30 - 2002 Mesa Boogie 4x12 - SM57

Cabinet

OutmodedElectronics

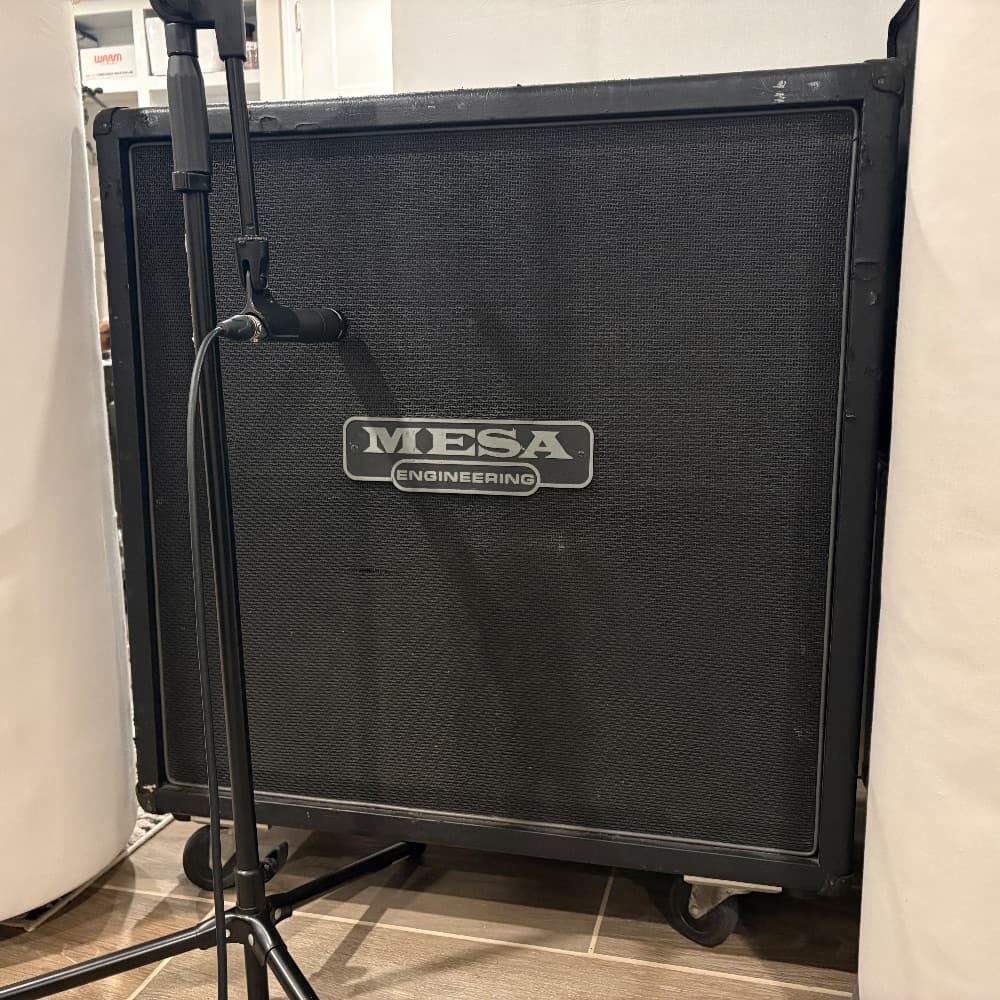

V30 - SM57 - Mesa Boogie Traditional 4x12 IRs - Pt 2

Cabinet

OutmodedElectronics

Amp Head Capture

NAM

OutmodedElectronics

Preview

0:00 / 0:00

Model

Input

Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.0067

A2-LiteESR: 0.025

400 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0033

A2-LiteESR: 0.0135

400 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0038

A2-LiteESR: 0.0146

400 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0048

A2-LiteESR: 0.0162

400 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0037

A2-LiteESR: 0.0203

400 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0029

A2-LiteESR: 0.0155

400 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0214

A2-LiteESR: 0.051

400 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0075

A2-LiteESR: 0.0234

400 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0027

A2-LiteESR: 0.0179

400 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0022

A2-LiteESR: 0.0134

400 Epochs

Dry/Wet

cal.

Captured on

10 Comments

tonemaniac

best recto capture I've ever tried.

smcd7

This is excellent - thanks!

jpdesign989

Yes, this is probly the best dual rec emulation I've ever heard. Wow! Thanks!

wyv3rn

Just made an account to say your captures are just fantastic. Thank you so much!

ofeketz99

Thats Awsome. Best one yet

danbatts

Amazing!! New to NAM, but what a way to start. Your captures are awesome, thanks so much for taking the time and sharing them!

License: T3K

Users may download and use the data file in software and publish the resulting outputs without royalties or restrictions. However, they may not upload, republish, or distribute the data file without the author's permission.

More Tones From @outmodedelectronics

View Profile

View Profile

Works with TONE3000

Browse and play TONE3000 tones directly in these plugins, pedals and amps.

Plugins

Official Plugin

Plugin

Pedals and amps

Pedal

Amp

NEW TO TONE3000?

Discover hyper-realistic digital models of iconic gear, including the Fender Twin Reverb, Vox AC30, Marshall JCM 800, and thousands more. Getting started is easy—and free!

Discover TONE3000

Mesa Dual Rectifier MW Red Modern - Mesa 4x12 - Full Rig

Description

Makes and Models

Tags

Linked Tones

Celestion Vintage 30 - 2002 Mesa Boogie 4x12 - SM57

V30 - SM57 - Mesa Boogie Traditional 4x12 IRs - Pt 2

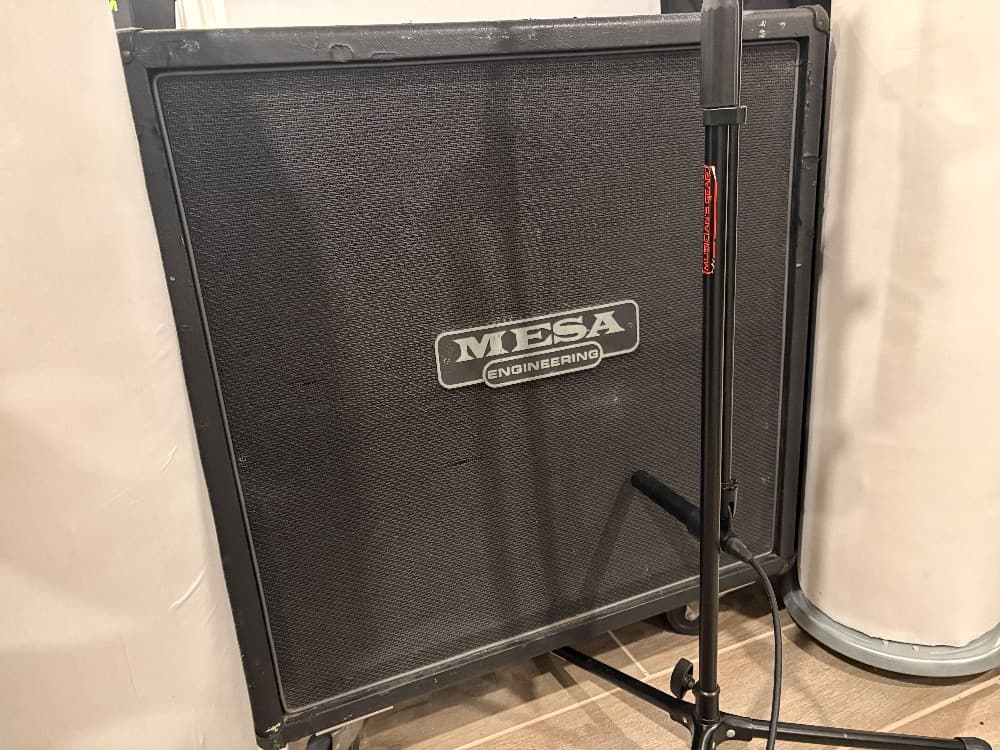

V30 - M201 - Mesa Traditional 4x12 IRs

Mesa Dual Rectifier MW Red Modern - Mesa 4x12 Load - Amp Head

Peavey 6505 1992 Original - Lead - Mesa 4x12 - Full Rig

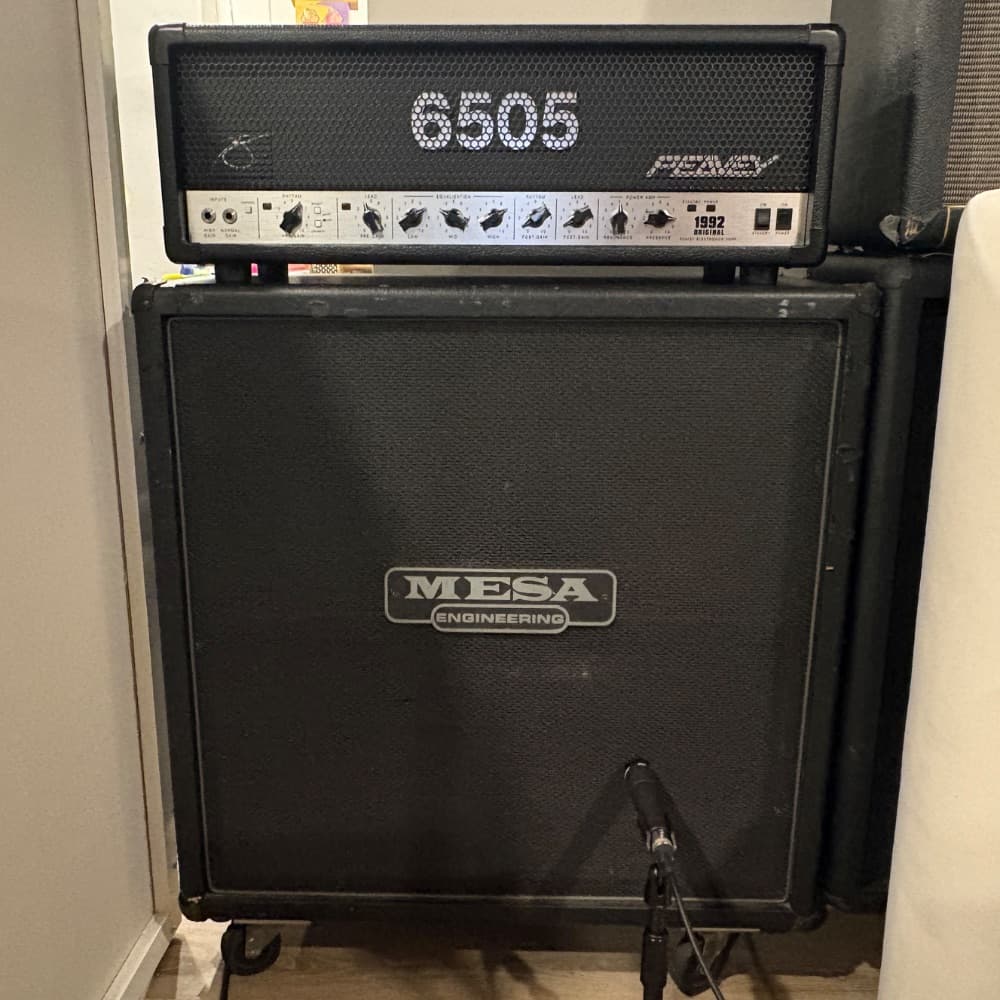

Peavey 6505 1992 Original - Lead - Mesa 4x12 Load - Amp Head

Mesa Badlander 50 - Crush - Mesa 4x12 - Full Rig

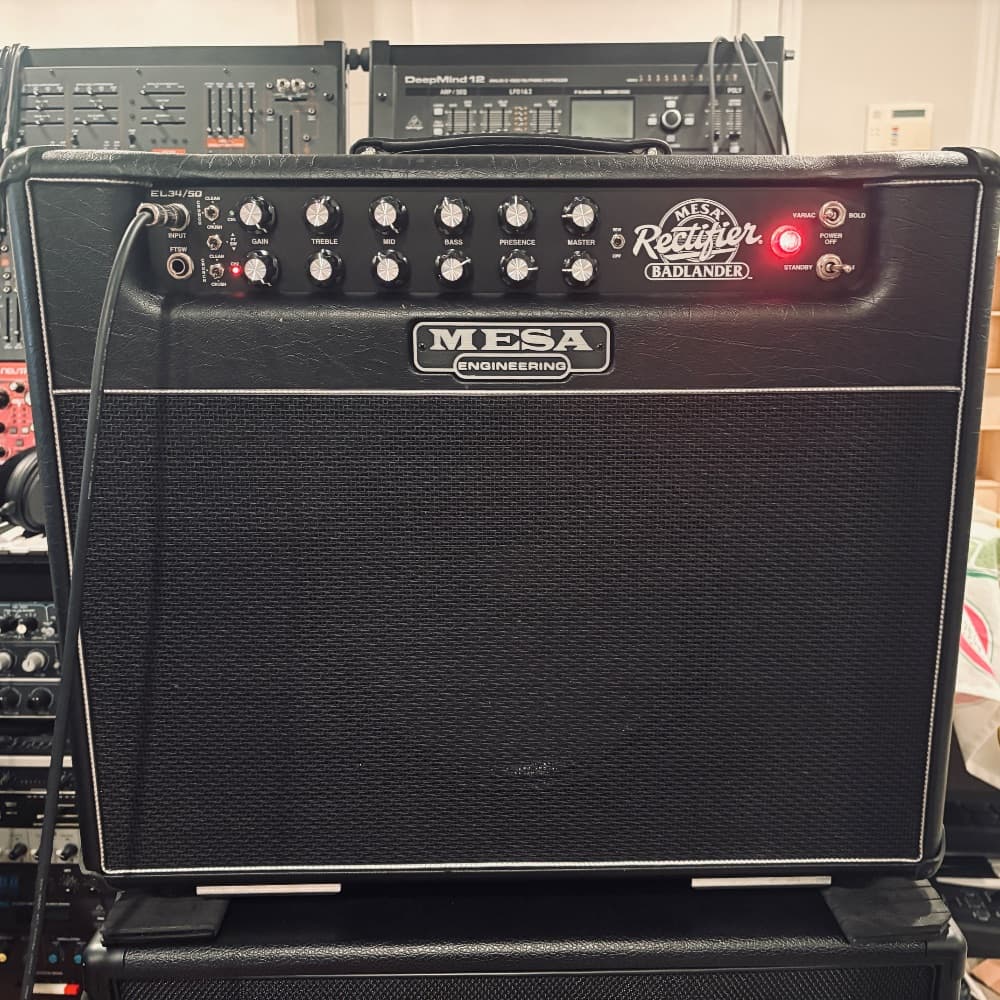

Mesa Badlander 50 - Crush - Mesa 4x12 Load - Amp Head

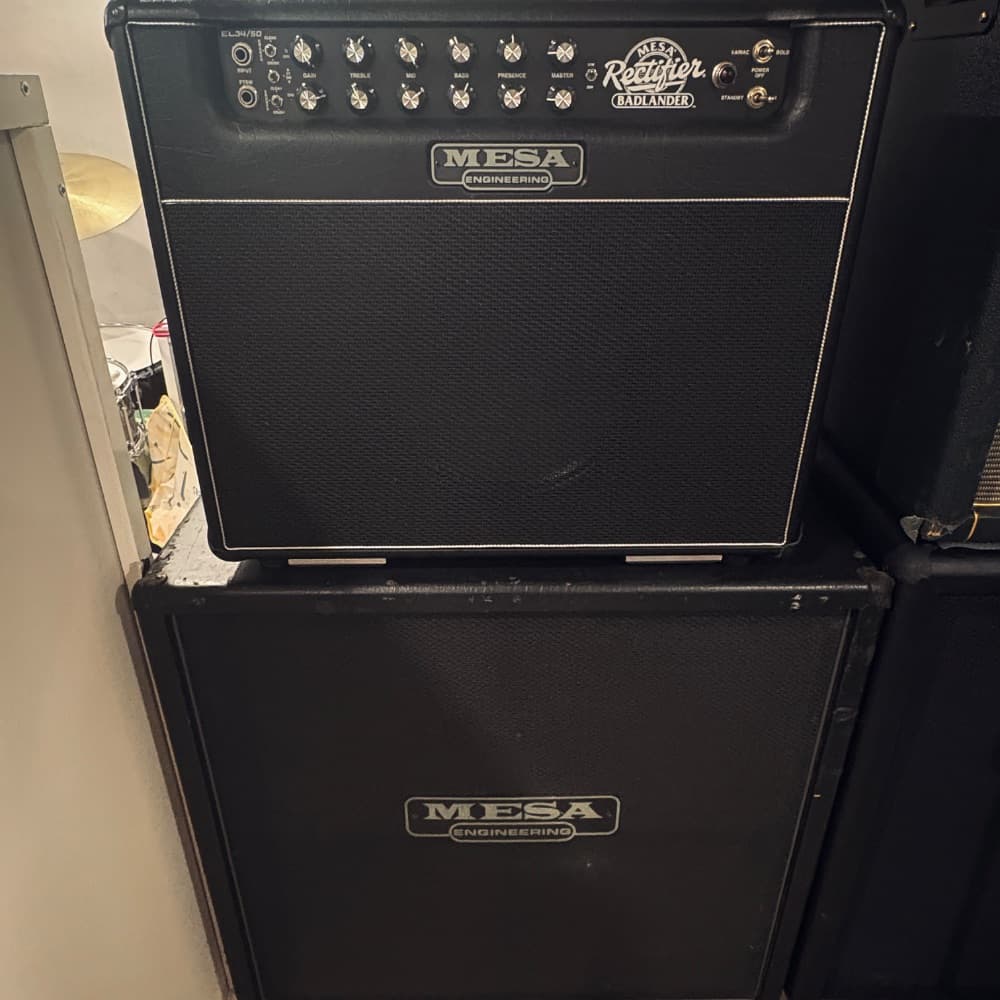

Mesa Badlander 50 - Crunch - Mesa 4x12 - Full Rig
