Panama Shaman

Amp Head Capture

NAM

10x12noisefactory's avatar

10x12noisefactory

11 months ago

Description

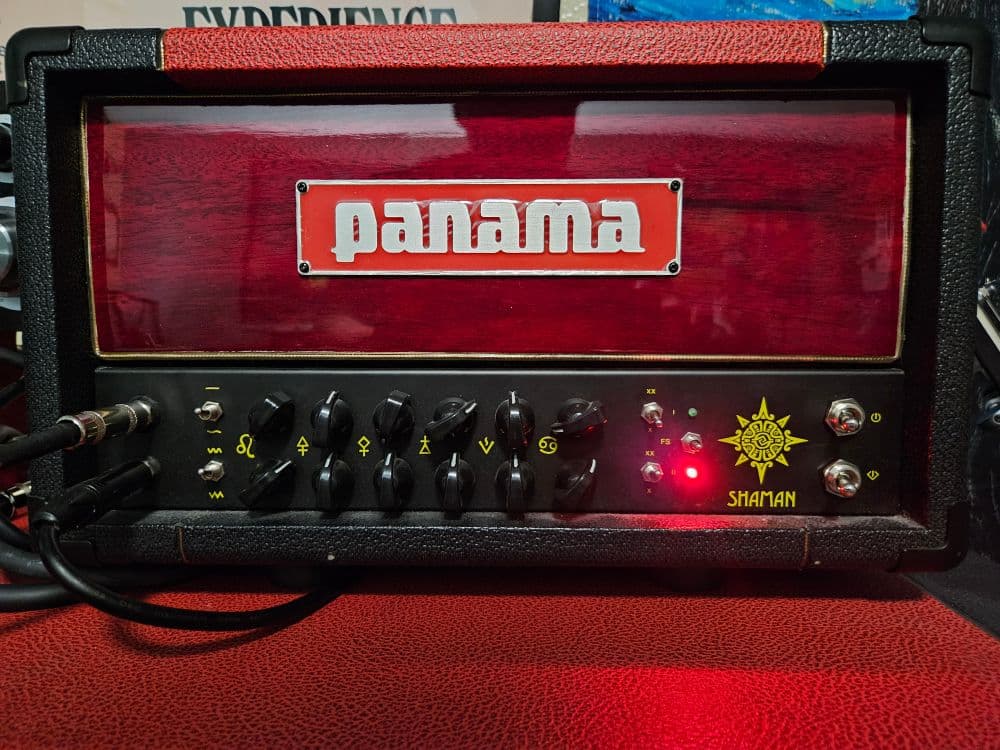

Panama Shaman's are another 20-ish take on the 4 voice Fender, AC-30, JCM 800 and Soldano head with EL 84 output and 4 12AX7s. The output of the amp for capture went from speaker out to CH3 of a Behringer G100 phantom power DI to a decade old Steinberg UR44 audio interface also supplying phantom power through XLR. The output of the the UR44 is sent through line out CH 1, with a 1/2 mono to XLR cable going into a fifteen dollar (today) PYLE PDC21 passive DI XLR *out* with maximum 40 db pad. The 4 ohm load for the head is a Panama 2x12 stereo cabinet in parallel, with both built in LPads turned to zero for silent output. This is not part of the output chain to the computer. Yes I am running a passive DI backwards. Because it works. The 1/4 inch input of the Pyle PDC21 then goes to the input of the Panama Shaman. The DAW I'm using is Reaper. I have also used this setup to use NAM amps on the computer as an overdrive for this amp. There are no effects or overdrives. All settings are 12 o'clock except gain and volume.

Preview

Model
IR
Input

Powered by

Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.0064

A2-LiteESR: 0.0142

500 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0063

A2-LiteESR: 0.0117

500 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0036

A2-LiteESR: 0.0078

500 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0145

A2-LiteESR: 0.0286

500 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0015

A2-LiteESR: 0.0051

500 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0003

A2-LiteESR: 0.0009

500 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0079

A2-LiteESR: 0.0184

500 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0005

A2-LiteESR: 0.0034

500 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0027

A2-LiteESR: 0.0079

500 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0004

A2-LiteESR: 0.0015

500 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs
