DIY S9014/S9018 Dual Breadboard Preamp DI

Name: DIY S9014/S9018 Dual Breadboard Preamp DI
Brand: TONE3000
SKU: TONE3000-diy-s9014s9018-dual-breadboard-preamp-di
Availability: InStock

Outboard Capture

NAM

2 Models

Comment

oti

1 month ago

Description

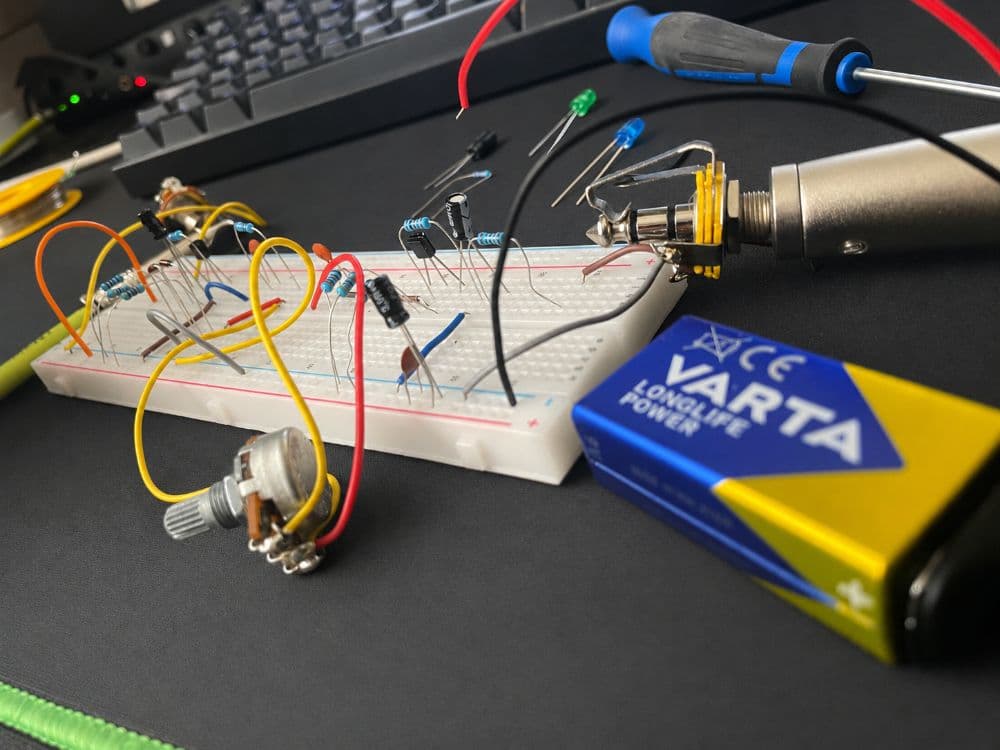

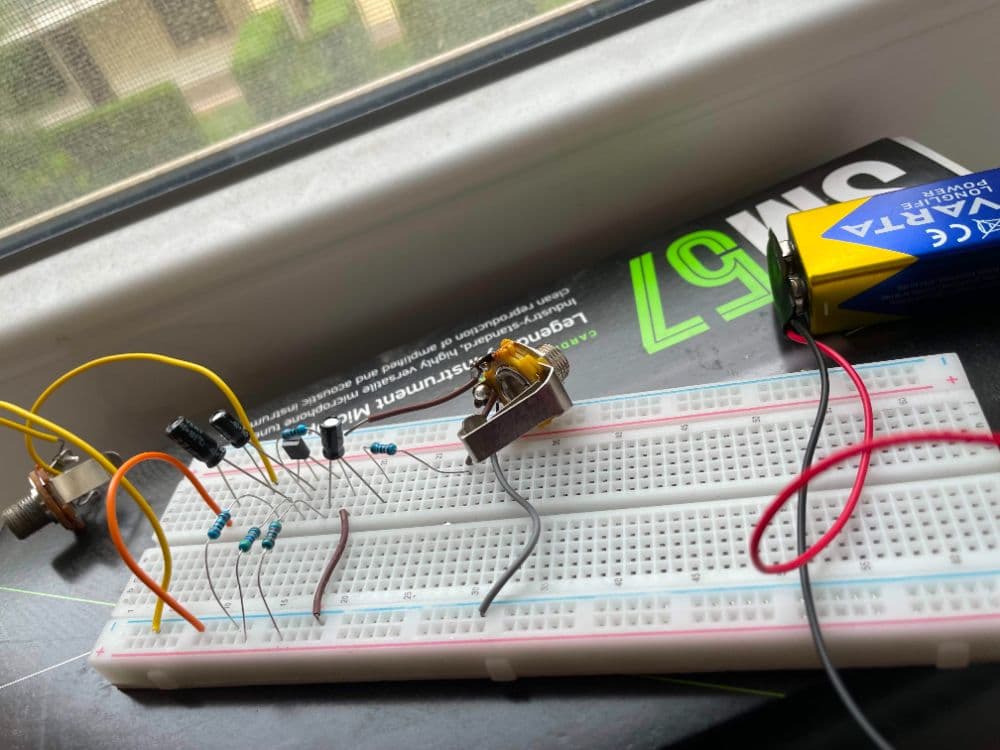

Updating my first build i added a second preamp stage using an S9018 transistor. I also used two small 1N4148 diodes in reverse order for a small crunchy distortion. Gain/Volume potmeter added so i can control the volume of the circuit. I also added 3 ceramic "104" (100nF) capacitor. Added a 47uF and 100nF capacitor to the power supply rail to reduce high and low frequency noises.

Preview

0:00 / 0:00

Model

Input

Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.0008

A2-LiteESR: 0.0025

500 Epochs

Sweep

Captured on

A2-FullESR: 0.0012

A2-LiteESR: 0.0012

500 Epochs

Sweep

Captured on
