Mojo Box

Outboard Capture

NAM

1

1

thesonumstudio

2 hours ago

Description

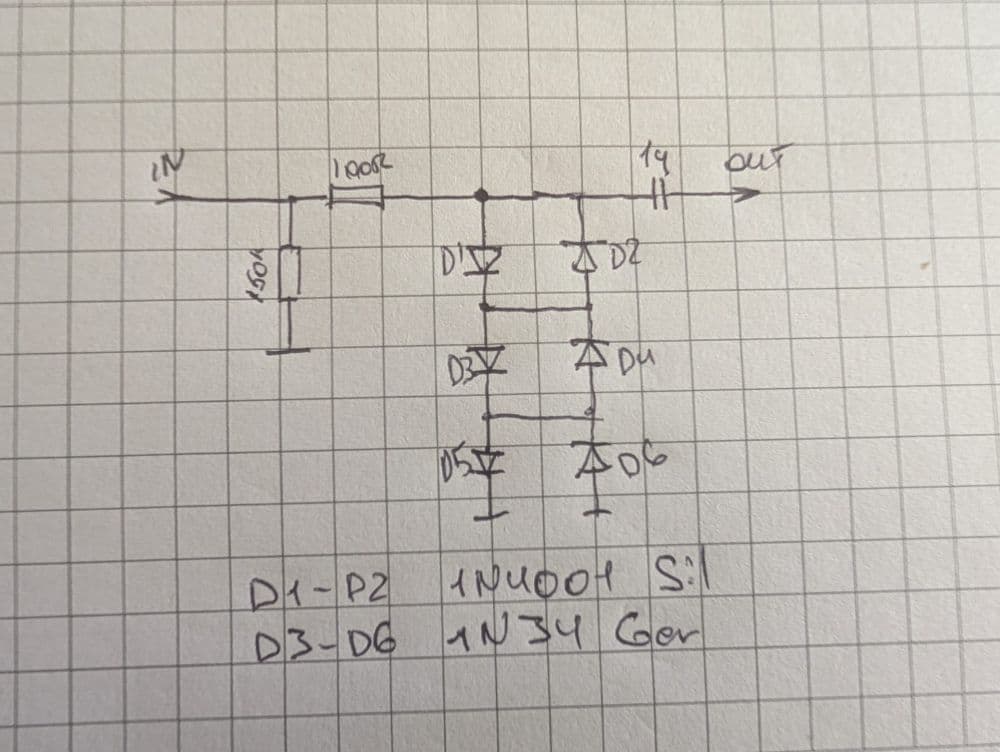

Old as Universe schematic of fully passive MojoBox. It delivers analogue sound and saturation approximately for $0. It was made on breadboard using two 1/4" jack sockets, 2x 1N4001 silicon rectification diodes, that I found in old radio power supply, and 4x 1N34 germanium diodes, one electrolytic mostly dry cap and two resistors :). DIY and made it at home.

Makes and Models

Mojo Box

Tags

analoguegermaniumnamoverdrivepassivesaturation
