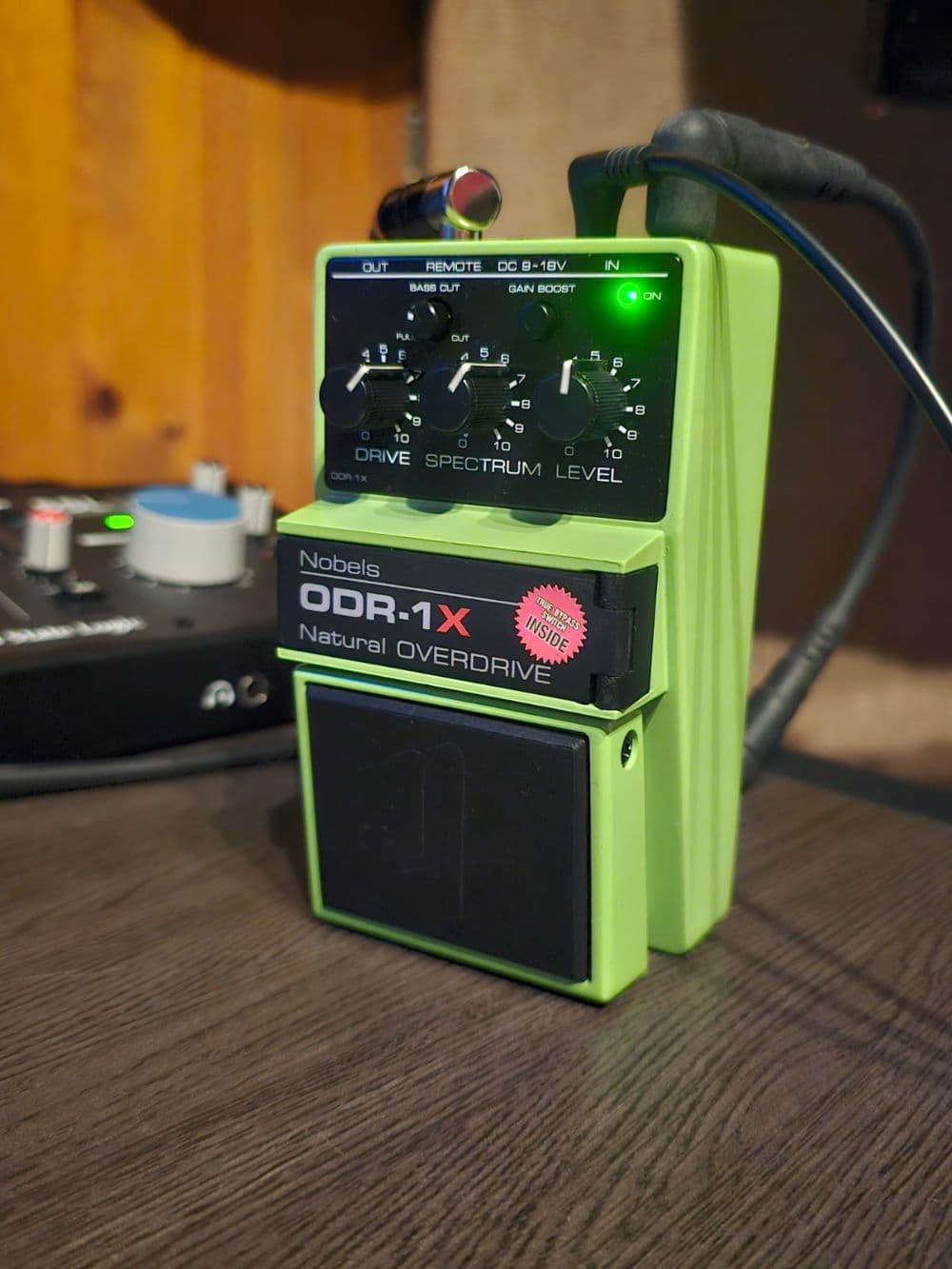

Nobels ODR-1X Natural Overdrive

The Nobels ODR-1X is an analog overdrive pedal engineered to deliver low-to-medium gain saturation while preserving the fundamental equalization of the instrument and amplifier. It builds upon the classic ODR-1 circuit architecture, recognized for its flat frequency response that avoids the pronounced mid-range peak characteristic of many traditional overdrive pedals. Core Controls and Equalization Drive: Regulates the amount of diode clipping and overall saturation. Level: Controls the overall output volume, offering sufficient gain to act as a clean or semi-dirty boost when the Drive is dialed back. Spectrum: Functions as a dual-band equalizer rather than a standard high-frequency roll-off filter. Rotating the knob clockwise concurrently boosts the high-mid/treble frequencies and lower-mid frequencies. Rotating it counter-clockwise attenuates both bands. This specialized EQ curve maintains the structural character of the guitar tone across the entire sweep. Technical Architecture and Features Bass Cut Switch: Addresses the inherent low-end thickness of the original ODR-1 circuit. Engaging this filter attenuates sub-bass frequencies, tightening the low-end response to prevent muddiness, which is particularly useful when pairing the pedal with humbucker-equipped guitars or dark-sounding amplifiers. Variable Voltage Operation: Supports power inputs from standard 9V DC up to 18V DC. Running the pedal at 18V increases internal headroom, resulting in less compression, an elevated clipping threshold, and higher dynamic range. Switching: Designed to integrate into complex signal chains without loading the pickups or causing high-frequency signal degradation when disengaged.
