DOA Discrete OpAmp OD Pedal by Nick C

Pedal Capture

NAM

3

Comment

ncblue

2 hours ago

Description

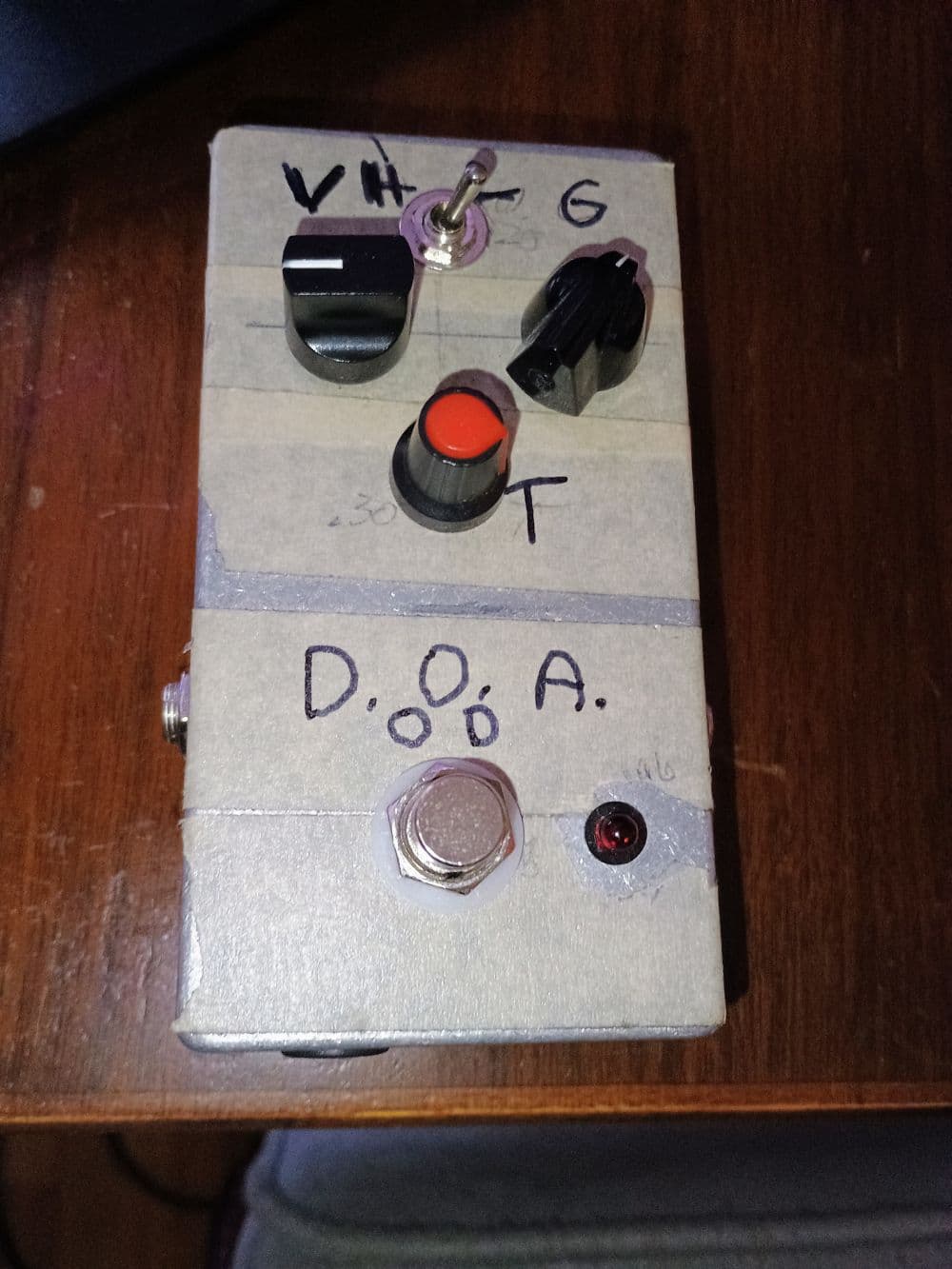

A DIY light to medium gain overdrive pedal derived from Joe Davisson's Diode-Compression Op Amp. Circuit type is similar to a Boss OD-3, or BD-2 Blues Driver. Very dynamic, responds excellently to picking and volume knob. The NAMs work best with the Gateway output mode set to "Raw". Light and Med gain models captured with my real pedal using the Dry/Wet method. LiveSpice model using LiveSpice's VSTBridge that I run live in VSTHost. A circuit you design in LiveSpice is easily be turned into a VST.

Tags

low gainnamoverdrivetransparent

Preview

Model
IR
Input

Powered by

Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.001

A2-LiteESR: 0.0027

200 Epochs

Dry/Wet

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0004

A2-LiteESR: 0.0005

200 Epochs

Dry/Wet

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0004

A2-LiteESR: 0.0024

200 Epochs

Dry/Wet

Captured on

Tone3000 - NAM Captures and IRs
