Maxon MB-XX / Ibanez No.XX Plug-in Boost Effects (LiveSPICE2NAM)

Outboard Capture

NAM

1
83ennui's avatar

83ennui

1mo

Description

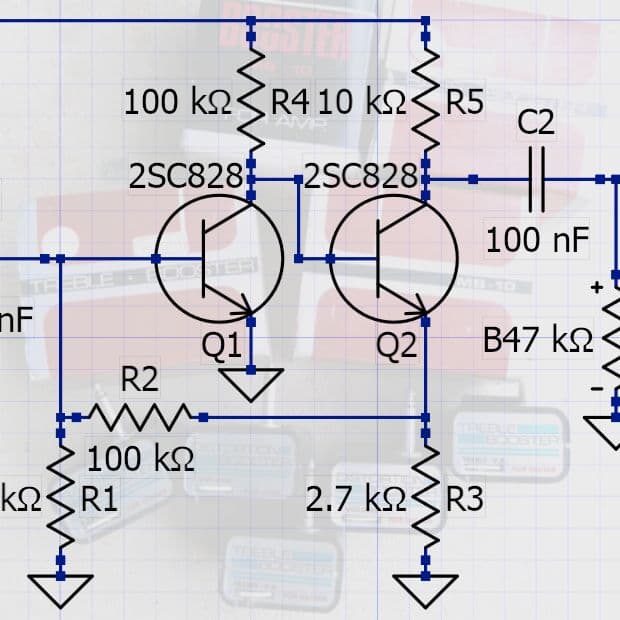

Series of Maxon MB-xx (Japan)/Ibanez No.xx (Overseas) Boost effect boxes. Done as per @fizu90's request from one of my YouTube video comment sections. These are essentially clones of EHX effects so they're simple enough to simulate. ・MB-10/No.85 - Bass Booster (EHX Mole clone) ・MB-20/No.86 - Power Booster (EHX LPB clone) ・MB-30/No.87 - Treble Booster (EHX Mole clone) ・MB-40/No.88 - Distortion Booster (EHX Muff Fuzz clone) [NOTES] ・All the models are captured with 8x oversampling and 64 iterations for the highest quality possible. ・Should you wish to push more gain into the captures, use a separate gain utility/plugin and a clipper/waveshaper/limiter with a ceiling of -0.1dB or less before your NAM loader to prevent nuking the models if the input signal gets too hot. === LiveSPICE: https://livespice.org/ Original LiveSPICE .schx schematic file: https://github.com/MARKTHERENCE/LiveSPICE-MK-Circuits === Image used is from Tym Guitars' blog post: https://tymguitars.com.au/blogs/blog/maxon-plug-in-boosts https://tymguitars.com.au/blogs/blog/maxon-plug-in-boosts === There has been some interest for me to have an option for people who'd like to donate for my work, so here's my PayPal link *only* if you feel generous: https://paypal.me/83ennui Making these captures take a lot of time, from researching the schematic diagrams (whether original or reproduced with certain degrees of verification), to cross-referencing from various gear presentations and demos, and several passes of training the captures to determine the adjustments needed with the LiveSPICE models/components for the most accurate/ideal simulation possible.

Preview

Model
IR
Input

Powered by

Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.001

A2-LiteESR: 0.0019

400 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0001

A2-LiteESR: 0.0003

400 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0

A2-LiteESR: 0.0005

400 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0019

A2-LiteESR: 0.0146

400 Epochs

Sweep

Captured on

Tone3000 - NAM Captures and IRs

1 Comment

Share your thoughts...
@username to mention • Ctrl+Enter to submit
Wow and amazing. Thanks @83ennui for making profiling this preamp studio gear. This effect does not reproduce anymore or even modeller have been made after discontinued. Gladly Ennui documented the circuit for the future generation preservation.... I wish you in good health as well as more sustenance every day....
