DRPS LM386 Pedal

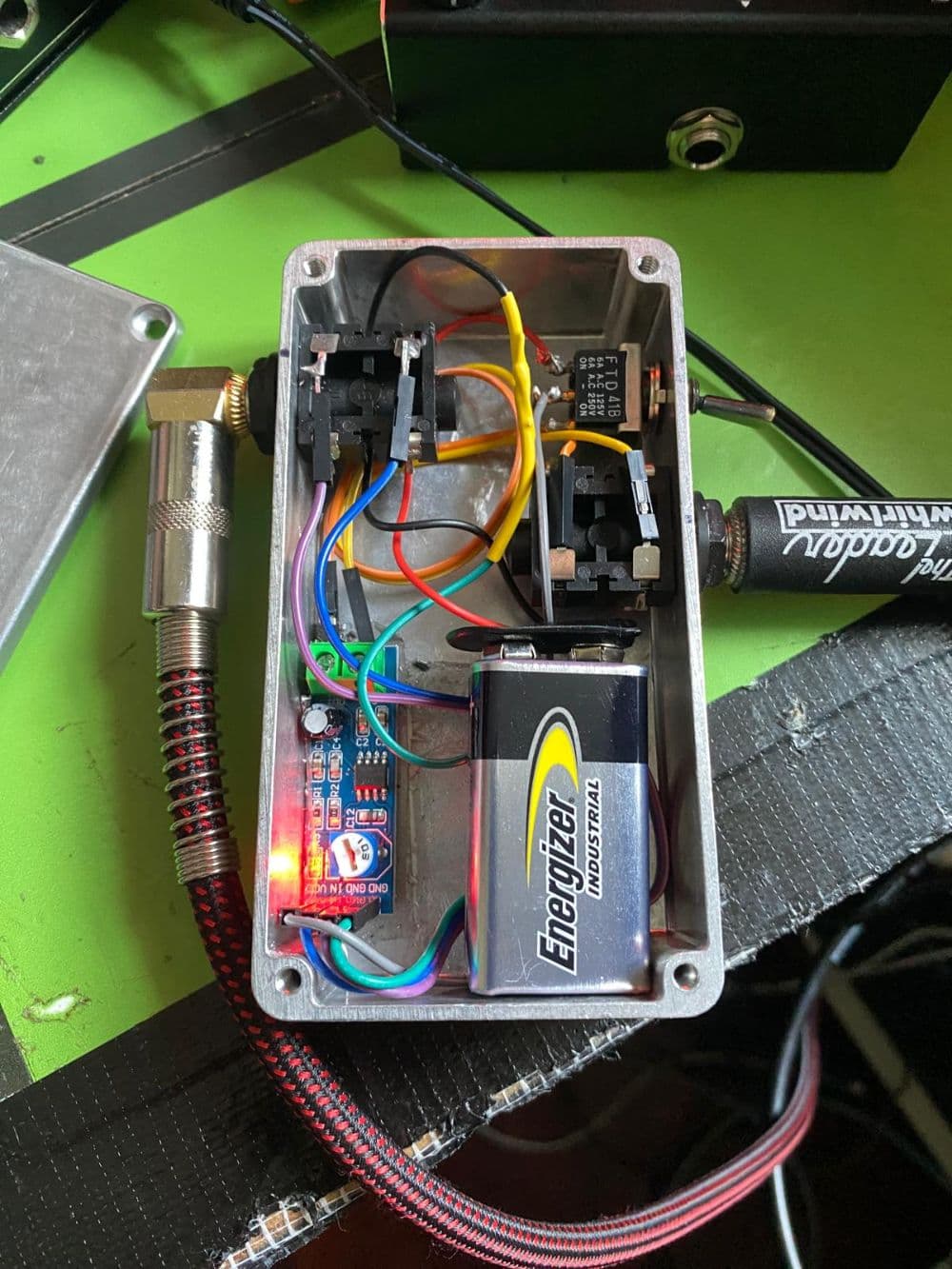

The DR Prophecy Studio LM386 pedal captured with the trim pot on full volume. Sounds great in front of guitar or bass amps. The LM386 is an absolute classic in the electronics world. It is a low-voltage audio power amplifier designed specifically for consumer applications. Think of it as the go-to, rugged little chip for when you need to make something audibly loud without sucking up a ton of power or requiring a complex circuit. Here is a breakdown of what makes it so popular, how it works, and where it's used. 🛠️ Key Features & Specifications The LM386 is beloved because it is incredibly forgiving and requires very few external components to get working. Low Power Consumption: It draws only about 4mA of quiescent current (the power it uses just sitting idle), making it perfect for battery-operated devices. Voltage Range: It typically operates on anything from 4V to 12V (the standard LM386N-1) or up to 18V for the LM386N-4 variant. Internal Gain: By default, it has an internal gain of 20 (26 dB). However, by adding an external capacitor and resistor between pins 1 and 8, you can crank that gain anywhere up to 200 (46 dB). Low Distortion: It maintains relatively low distortion (around 0.2%) under normal operating conditions.
