Hairball Audio FET/500 Rev D - 1176 Rev D Clone

Outboard Capture

NAM

7
outmodedelectronics's avatar

OutmodedElectronics

1mo

Description

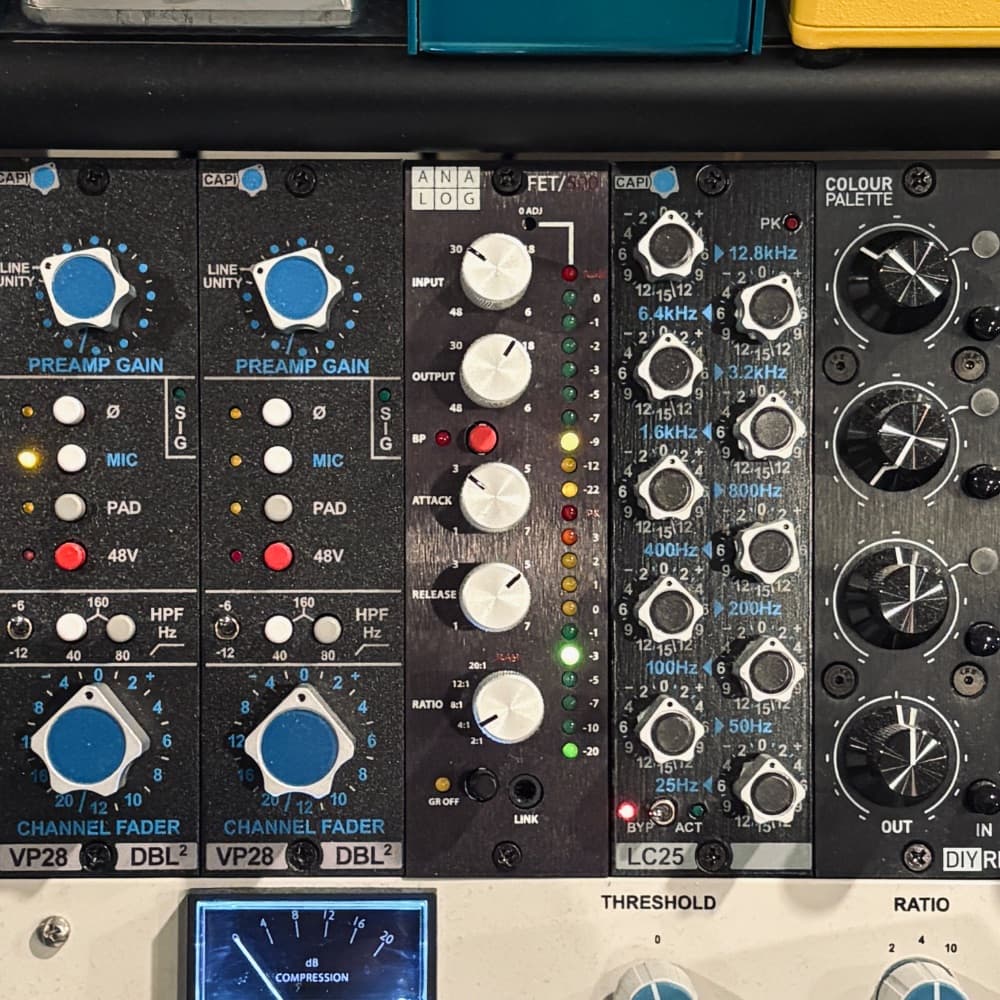

The Hairball Audio FET/500 Revision D is a 500-series clone of the UREI 1176 Rev D. The Rev D circuit is considered a middle ground between the dirtier Rev A and the cleaner Rev F. The FET/500 has the same audio path as their larger 1176 kits. I built this FET/500 as a kit a couple years back. Starting Point: FET500D Att-3 Rel-5 4-1.nam See notes below for my recommendations regarding usage. To dial in the FET/500, I referenced some snare drum tracks peaking at around -6dB. I settled on a Threshold (30) that provided moderate gain reduction (~7dB). Output was setting at around 18 to provide enough makeup gain, although the output can be backed off a bit more depending on source. See recommendations. I had a specific application in mind, so I am curious how this translates to all of you. Captured are 2 Attack and Release times: 1: Attack-3 Release-5 (Dr. Pepper setting) 2: Attack-2 Release-6 (Slow Attack, Faster Release) 3: Attack-5 Release-7 (Med/Fast Attack, Fast Release) Ratios Captured: 4, 8, 12, 20, SLAM (All Buttons In) Recommendations: You may need to turn down the block's output volume depending on the source. I don't need to compensate something like a Snare Drum, but Room Mic crushing might require about a 3dB drop from the plugin's Output. I’ve provided the send/return calibration for record. However, I recommend not using calibration or normalization for this particular pack. My input/output is set at unity gain. It is as if you sent your audio track to me, and I then printed the track with the FET/500 as a hardware insert with my chain and sent the files back to you. Being able to use the captures without adjusting calibration or levels should make this pack easy to use. You can of course adjust the input level to drive the FET/500 however you want. When I had calibration turned on and set with my usual 11.5dBu, I experienced a slight loss in level (on the order of 6dB). I A/Bed the NAM captures with the FET/500 as a hardware insert, and felt that turning off calibration matched the hardware the best. I also recommend turning off the Gate in your respective NAM plugin for this application. Filenames contain the relevant settings in the following order: (Att)ack (Rel)ease Ratio Signal Chain: RME UCX II Out (19dBu Send) - FET/500 - RME UCX II In (19dBu Return)

Preview

NAM CaptureTone on
Mayer - GuitarNone

NAM Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.0148

A2-LiteESR: 0.0236

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0238

A2-LiteESR: 0.0344

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0302

A2-LiteESR: 0.04

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0327

A2-LiteESR: 0.0349

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0088

A2-LiteESR: 0.015

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0086

A2-LiteESR: 0.014

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0113

A2-LiteESR: 0.0214

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0157

A2-LiteESR: 0.0251

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.018

A2-LiteESR: 0.028

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

A2-FullESR: 0.0049

A2-LiteESR: 0.0116

400 Epochs

Sweep

cal.

Captured on

Tone3000 - NAM Captures and IRs

7 Comments

Share your thoughts...
@username to mention • Ctrl+Enter to submit
tonecontrol's avatar
amazing
0
Thanks!
0
