Mesa Badlander 50 - Crush - Mesa 4x12 - Full Rig

Name: Mesa Badlander 50 - Crush - Mesa 4x12 - Full Rig
Brand: TONE3000
SKU: TONE3000-mesa-badlander-50-crush-mesa-4x12-full-r
Availability: InStock

Amp + Cab Capture

NAM

40 Models

Comment

outmodedelectronics

1 hour ago

Description

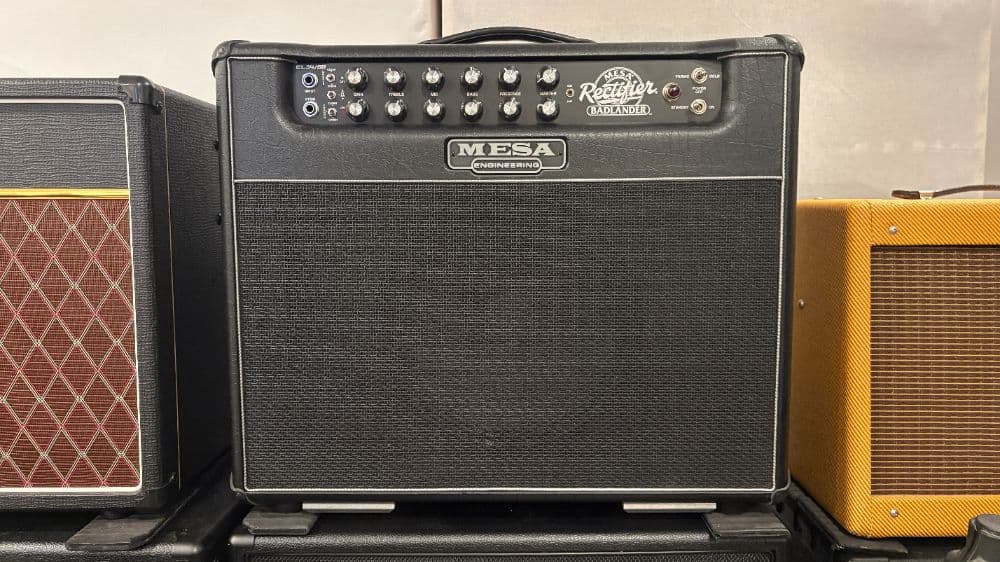

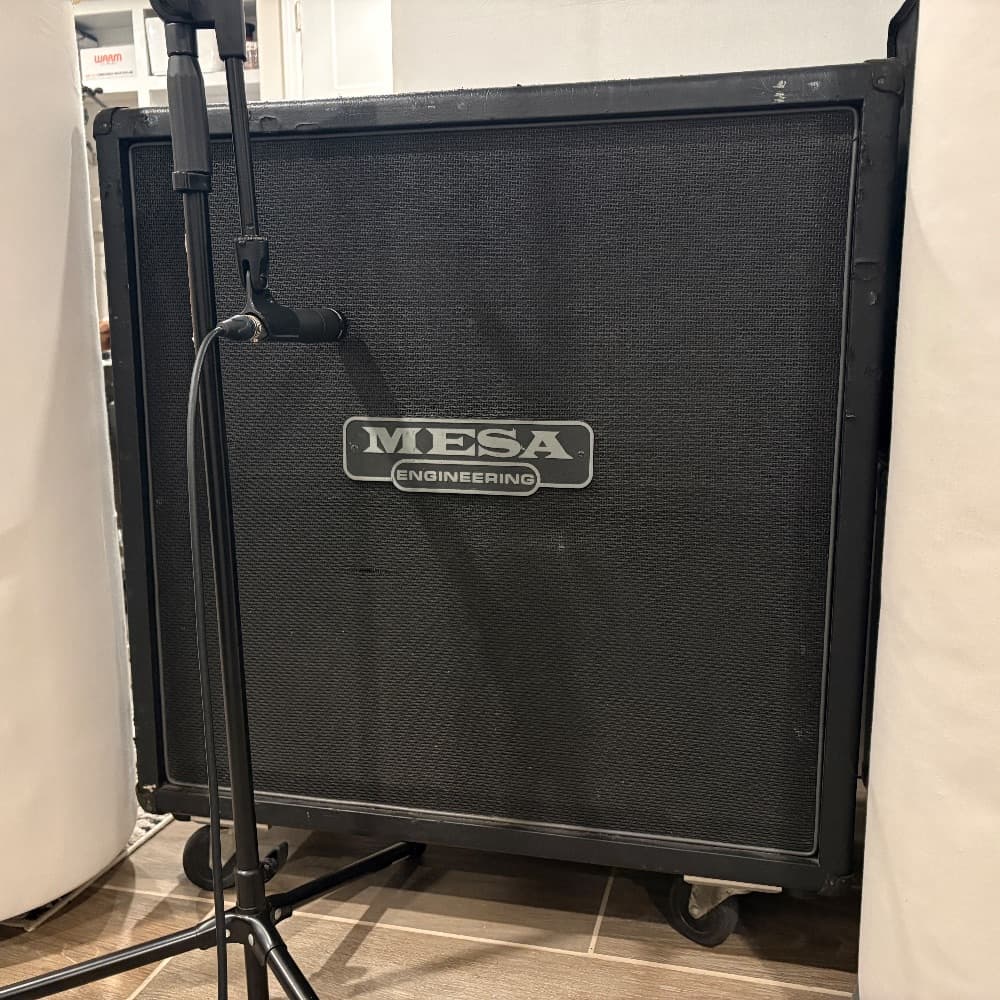

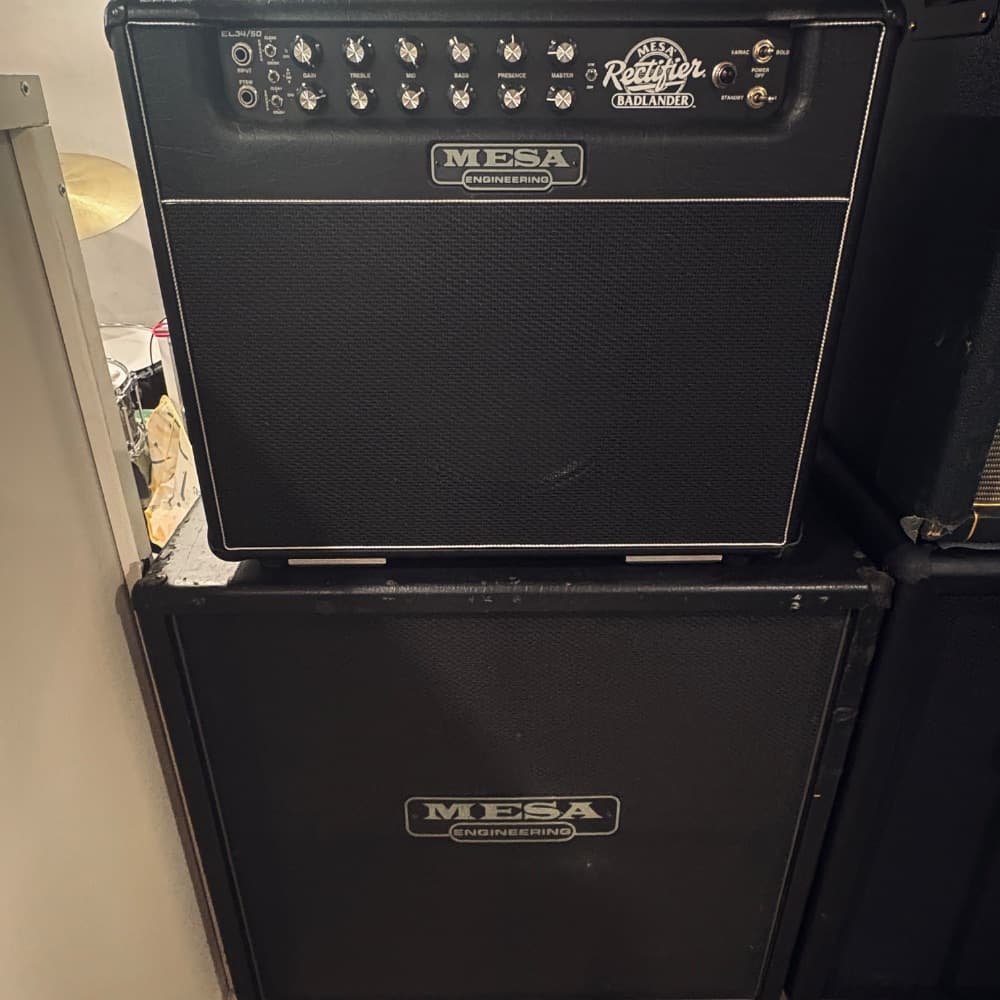

I made Amp+Cab captures of my Mesa Badlander 50 combo plugged into a Mesa Traditional 4x12 with V30s. Two gain settings (8, 10) were used. Tone settings are provided in the following order, approximated from 0-10: Treble - Mid - Bass - Presence Tone Setting 1: T-6 M-6 B-7 P-6 Tone Setting 2: T-5 M-4 B-8 P-7 These Full Rigs were recorded simultaneously with my Amp Head captures (see Linked Tones). Speaker Positions are LL – lower left, LR – lower right, UL – upper left, UR – upper right The UL and LL speakers are a bit more scooped than the UR and LR speakers, with more bite on the high end. The UL/LL mic position are further from the cap center than the LR/UR positions. The SM57 mic positions are as follows: UL and LL speakers a - 0.50” (~1.3cm) from the cap center, on the grille b - 0.75" (~1.9cm) from the cap center, on the grille c - 1.00” (~2.5cm) from the cap center, on the grille LR and UR speakers a - 0.00" from the cap center, on the grille b - 0.50” (~1.3cm) from the cap center, on the grille The shortened TTSV11 file from The Tone Scientist was used. https://www.tone3000.com/thetonescientist Input/output calibration metadata for 11.5dBu send/11.7dBu return was filled in during TONE3000 training. Full Rig Signal Chain: RME UCX II Line Out – United Studio Technology Replay Box at 11.5dBu - Mesa Badlander 50 - Suhr Reactive Load Thru - Mesa Traditional 4x12 Cabinet – Celestion V30 - Shure SM57 - CAPI VP28 - RME UCX II Line In at 11.7dBu

Makes and Models

CAPI VP28 Celestion Vintage 30 Mesa Boogie Badlander 50 Mesa Traditional 4x12 Shure SM57

Linked Tones

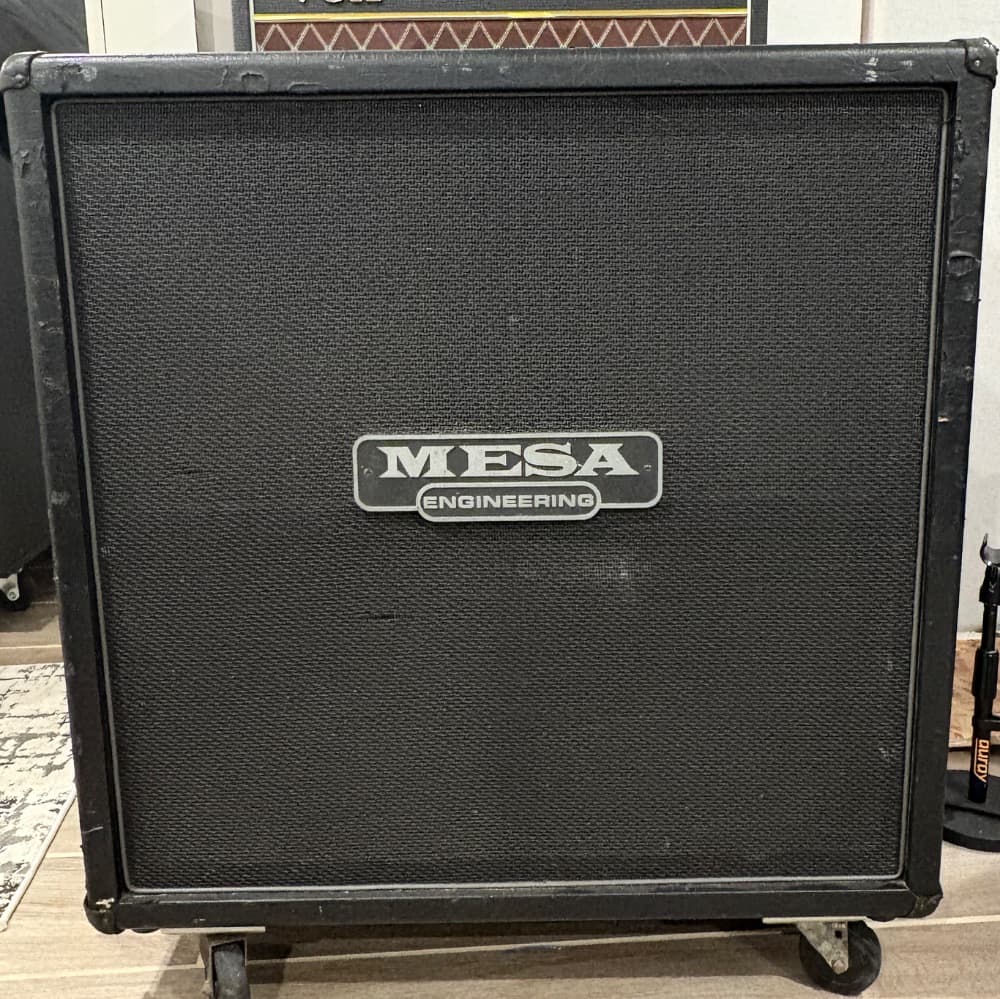

Celestion Vintage 30 - 2002 Mesa Boogie 4x12 - SM57

Cabinet

outmodedelectronics

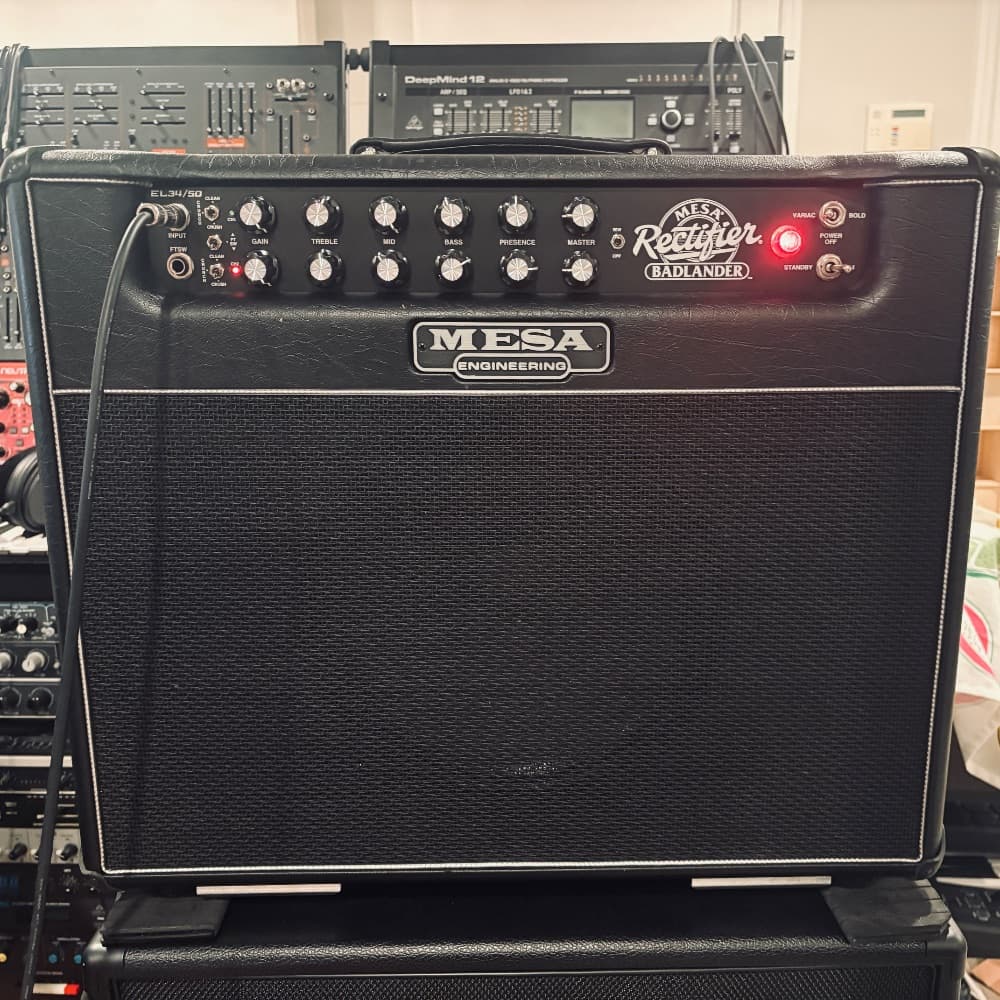

Mesa Badlander 50 - Crush - Mesa 4x12 Load - Amp Head

Amp Head Capture

NAM

outmodedelectronics

Preview

Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.0041

A2-LiteESR: 0.0193

400 Epochs

Dry/Wet

Captured on

A2-FullESR: 0.0043

A2-LiteESR: 0.0249

400 Epochs

Dry/Wet

Captured on

A2-FullESR: 0.0035

A2-LiteESR: 0.0188

400 Epochs

Dry/Wet

Captured on

A2-FullESR: 0.0038

A2-LiteESR: 0.0209

400 Epochs

Dry/Wet

Captured on

A2-FullESR: 0.0038

A2-LiteESR: 0.0158

400 Epochs

Dry/Wet

Captured on

A2-FullESR: 0.0036

A2-LiteESR: 0.0142

400 Epochs

Dry/Wet

Captured on

A2-FullESR: 0.0047

A2-LiteESR: 0.0209

400 Epochs

Dry/Wet

Captured on

A2-FullESR: 0.0038

A2-LiteESR: 0.0191

400 Epochs

Dry/Wet

Captured on

A2-FullESR: 0.0042

A2-LiteESR: 0.0199

400 Epochs

Dry/Wet

Captured on

A2-FullESR: 0.0047

A2-LiteESR: 0.0233

400 Epochs

Dry/Wet

Captured on

Comments

License: T3K

Users may download and use the data file in software and publish the resulting outputs without royalties or restrictions. However, they may not upload, republish, or distribute the data file without the author's permission.

Use Your Tones

Load NAM files and IR's from TONE3000 onto a free plugin or compatible pedal.

Plugins

Recommended (free)

Pedals

Chaos Audio

Darkglass Electronics

Dimehead

NEW TO TONE3000?

Discover hyper-realistic digital models of iconic gear, including the Fender Twin Reverb, Vox AC30, Marshall JCM 800, and thousands more. Getting started is easy—and free!

Discover TONE3000

Mesa Badlander 50 - Crush - Mesa 4x12 - Full Rig

Description

Makes and Models

Tags

Linked Tones

Celestion Vintage 30 - 2002 Mesa Boogie 4x12 - SM57

Mesa Badlander 50 - Crush - Mesa 4x12 Load - Amp Head

Preview

Models

FR MB BL50 Cs G-10 - 1 - 4FB UR SM57b

FR MB BL50 Cs G-10 - 2 - 4FB UR SM57b

FR MB BL50 Cs G-8 - 1 - 4FB UR SM57b

FR MB BL50 Cs G-8 - 2 - 4FB UR SM57b

FR MB BL50 Cs G-8 - 1 - 4FB LR SM57b

FR MB BL50 Cs G-8 - 2 - 4FB LR SM57b

FR MB BL50 Cs G-10 - 1 - 4FB LL SM57b

FR MB BL50 Cs G-8 - 2 - 4FB LR SM57a

FR MB BL50 Cs G-10 - 1 - 4FB LR SM57b

FR MB BL50 Cs G-10 - 2 - 4FB LR SM57a

FR MB BL50 Cs G-10 - 1 - 4FB LR SM57a

FR MB BL50 Cs G-8 - 1 - 4FB LR SM57a

FR MB BL50 Cs G-10 - 2 - 4FB LL SM57b

FR MB BL50 Cs G-8 - 2 - 4FB LL SM57c

FR MB BL50 Cs G-10 - 1 - 4FB LL SM57c

FR MB BL50 Cs G-8 - 1 - 4FB LL SM57b

FR MB BL50 Cs G-10 - 2 - 4FB LR SM57b

FR MB BL50 Cs G-10 - 2 - 4FB LL SM57c

FR MB BL50 Cs G-8 - 1 - 4FB LL SM57c

FR MB BL50 Cs G-8 - 2 - 4FB LL SM57b

FR MB BL50 Cs G-8 - 2 - 4FB UR SM57a

FR MB BL50 Cs G-8 - 1 - 4FB UR SM57a

FR MB BL50 Cs G-10 - 1 - 4FB UL SM57c

FR MB BL50 Cs G-10 - 1 - 4FB UL SM57b

FR MB BL50 Cs G-10 - 2 - 4FB LL SM57a

FR MB BL50 Cs G-8 - 2 - 4FB UL SM57c

FR MB BL50 Cs G-10 - 2 - 4FB UR SM57a

FR MB BL50 Cs G-8 - 2 - 4FB LL SM57a

FR MB BL50 Cs G-10 - 1 - 4FB UR SM57a

FR MB BL50 Cs G-8 - 1 - 4FB LL SM57a

FR MB BL50 Cs G-8 - 1 - 4FB UL SM57b

FR MB BL50 Cs G-8 - 1 - 4FB UL SM57c

FR MB BL50 Cs G-10 - 2 - 4FB UL SM57c

FR MB BL50 Cs G-8 - 2 - 4FB UL SM57b

FR MB BL50 Cs G-10 - 1 - 4FB LL SM57a

FR MB BL50 Cs G-10 - 2 - 4FB UL SM57b

FR MB BL50 Cs G-8 - 1 - 4FB UL SM57a

FR MB BL50 Cs G-10 - 1 - 4FB UL SM57a

FR MB BL50 Cs G-8 - 2 - 4FB UL SM57a

FR MB BL50 Cs G-10 - 2 - 4FB UL SM57a
