Peavey 6505 1992 Original - Lead - Mesa 4x12 - Full Rig

Name: Peavey 6505 1992 Original - Lead - Mesa 4x12 - Full Rig
Brand: TONE3000
SKU: TONE3000-peavey-6505-1992-original-lead-mesa-4x12
Availability: InStock

Amp + Cab Capture

NAM

96 Models

OutmodedElectronics

4mo

Description

I made Full Rig captures of my Peavey 6505 1992 Original’s Lead Channel into a Mesa Traditional 4x12 with V30s. I also used a Boss SD-1 pedal to boost the amp. Six tone settings are provided in the following order: Pre-Gain - Bass - Mid - Treble - Post-Gain - Resonance - Presence 1 - Pr-4 B-5 M-2 T-6 Po-1 R-6 P-7 2 - Pr-4 B-5 M-4 T-6.5 Po-1 R-6.5 P-7.5 3 - Pr-4 B-5 M-5 T-6 Po-1 R-7 P-7.5 4 - Pr-4 B-6 M-4 T-7 Po-1 R-7 P-8 5 - Pr-4 B-6 M-6 T-6 Po-1 R-6 P-8 6 - Pr-4 B-7 M-3 T-7 Po-1 R-5 P-8 The main pack is comprised of A2 captures. I have included A1 captures for those with the Hotone/Sonicake/Valeton devices. The A1 versions are available for the unboosted settings, which I worked on before the move to A2. These Full Rigs were recorded simultaneously with my Amp Head captures (see Linked Tones). I was trying to impart the Mesa 4x12’s impedance curve onto the captures of the 6505. It made sense to throw a mic onto the cabinet. Speaker Positions are LL – lower left, LR – lower right, UL – upper left, UR – upper right The UL and LL speakers are a bit more scooped than the UR and LR speakers, with more bite on the high end. The SM57 mic positions are as follows: a - 0.50" (~1.3cm) from the cap center, on the grille b - 0.75” (~1.9cm) from the cap center, 0.50" (~1.3cm) off the grille c - 1.00” (~2.5cm) from the cap center, 1.00” (~2.5cm) off the grille A2 Files -Generally, the ‘a’ and ‘b’ mic positions are available. -The ‘c’ position is only available for the UL and UR speakers, unboosted. -The SD-1 boosted captures of the UR and LR speakers are only available in the ‘a’ position. A1 Files -Generally, the ‘a’ and ‘b’ mic positions are available. -The ‘c’ position is only available for the UL and UR speakers. A mix of the TTSV10 file and the shortened TTSV11 file were used, depending on when I trained the captures. Both input files are from The Tone Scientist, a contributor to the NAM community. https://shop.thetonescientist.com/ For Sonicake Pocket Master (and possibly Valeton/Hotone) users, I recommend setting the global input trim to -2dB. Add a Bass EQ block, and take the 50Hz and 120Hz down to -10. These tweaks get me closest to the intended sound when I use the NAM plugin. Input/output calibration metadata for 11.5dBu send/11.7dBu return was filled in during TONE3000 training. Full Rig Signal Chain: RME UCX II Line Out – United Studio Technology Replay Box at 11.5dBu - Boss SD-1 = Peavey 6505 1992 Original - Suhr Reactive Load Thru - Mesa Traditional 4x12 Cabinet – Celestion V30 - Shure SM57 - CAPI VP28 - RME UCX II Line In at 11.7dBu These tones probably could have been closely approximated with my Amp Head Captures and IRs, but it is more fun to push some air to make captures.

Makes and Models

CAPI VP28 Celestion Vintage 30 Mesa Traditional 4x12 Peavey 6505 1992 Original Shure SM57

Linked Tones

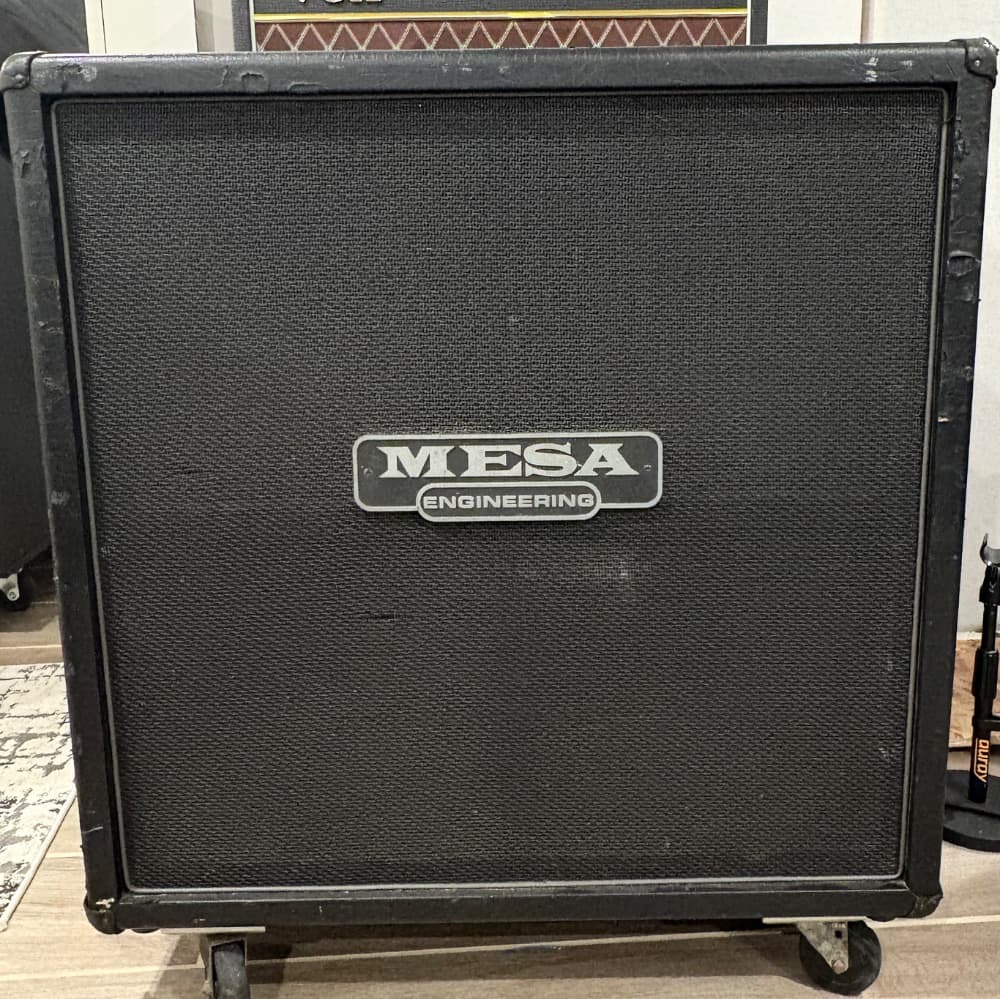

Celestion Vintage 30 - 2002 Mesa Boogie 4x12 - SM57

Cabinet

OutmodedElectronics

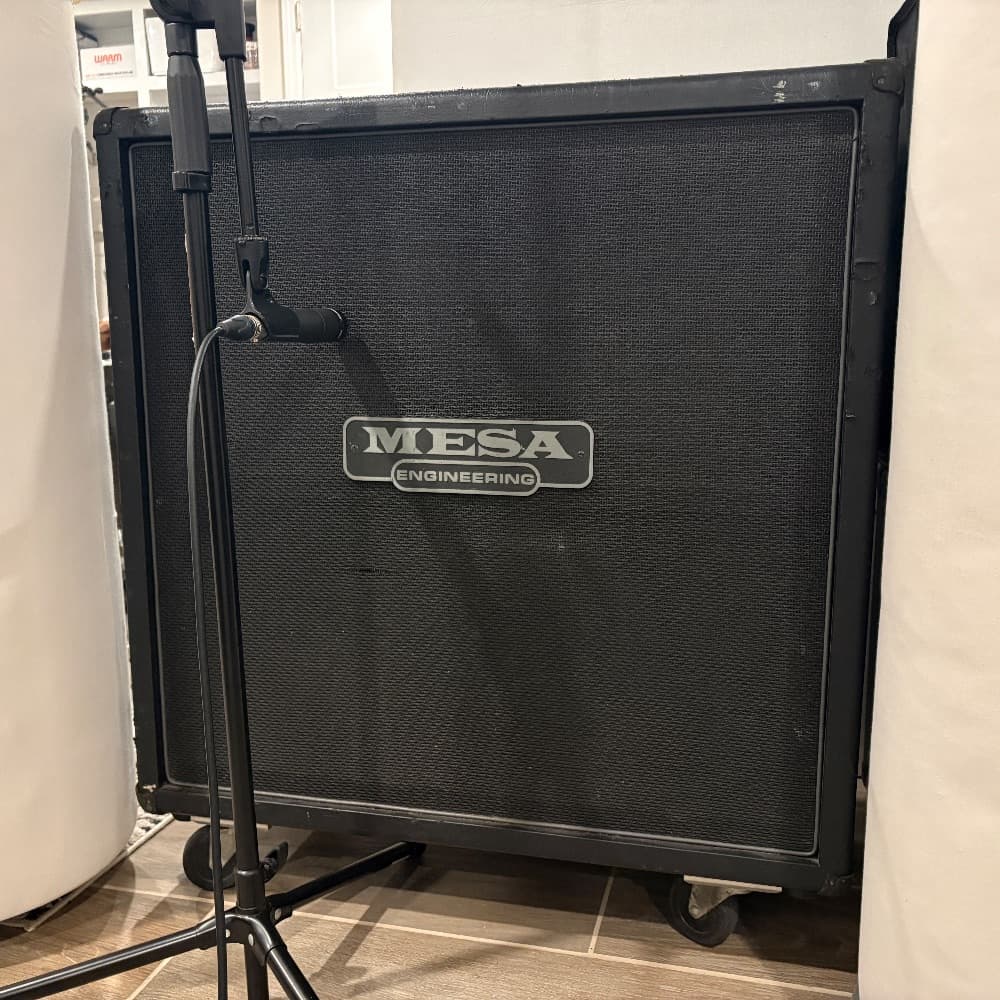

V30 - SM57 - Mesa Boogie Traditional 4x12 IRs - Pt 2

Cabinet

OutmodedElectronics

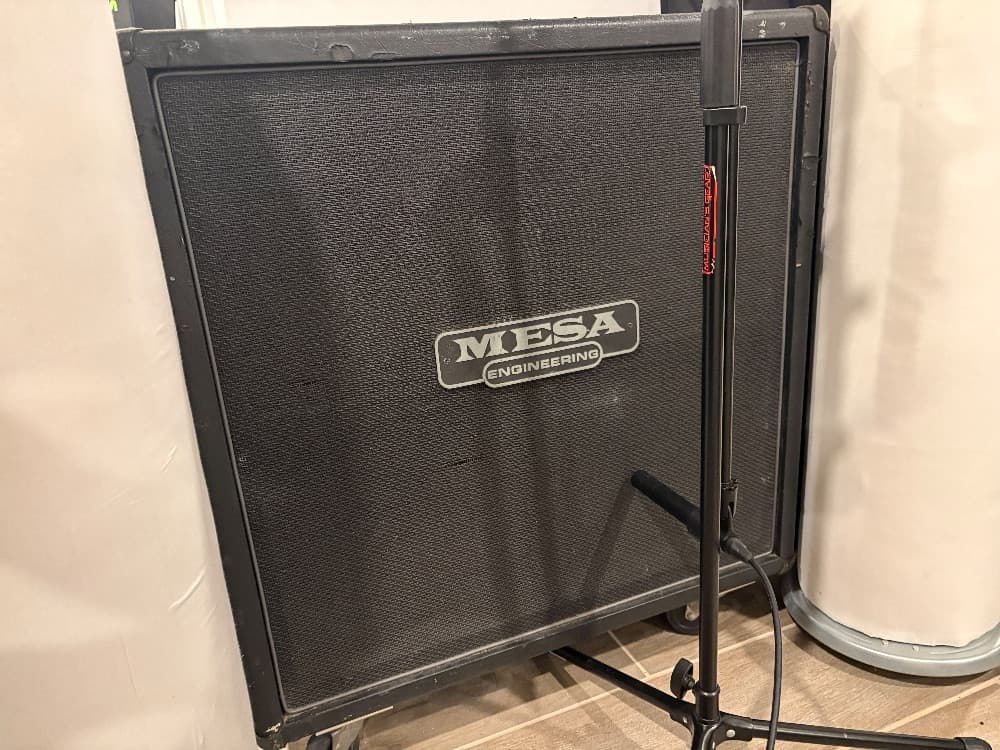

V30 - M201 - Mesa Traditional 4x12 IRs

Cabinet

OutmodedElectronics

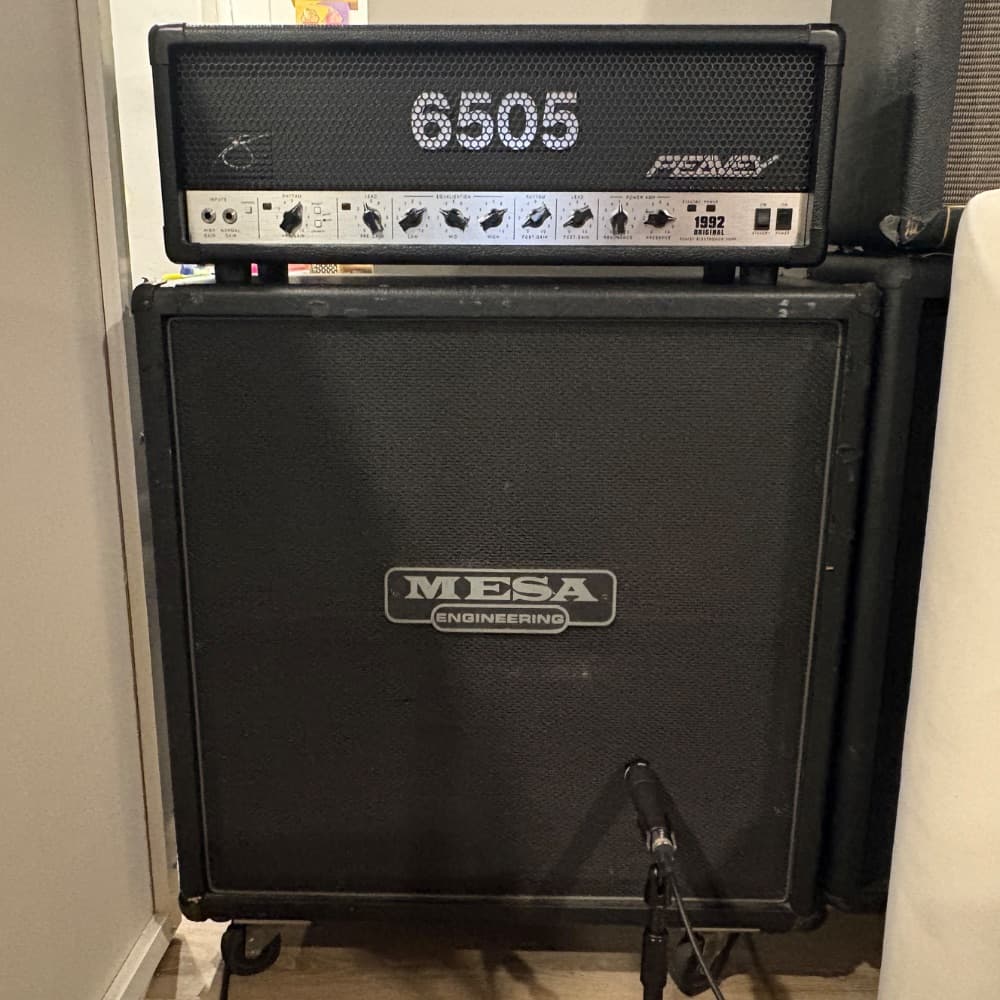

Peavey 6505 1992 Original - Lead - Mesa 4x12 Load - Amp Head

Amp Head Capture

NAM

OutmodedElectronics

Preview

0:00/0:00

NAM CaptureTone on

Input:Mayer - GuitarReverb:None

NAM Models

Each model captures the gear at specific knob settings.

A2-FullESR: 0.0089

A2-LiteESR: 0.0483

500 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0085

A2-LiteESR: 0.0414

500 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0081

A2-LiteESR: 0.0562

500 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0075

A2-LiteESR: 0.038

500 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0072

A2-LiteESR: 0.0336

500 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0073

A2-LiteESR: 0.0414

500 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0103

A2-LiteESR: 0.0701

500 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0089

A2-LiteESR: 0.0368

500 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0072

A2-LiteESR: 0.0447

500 Epochs

Dry/Wet

cal.

Captured on

A2-FullESR: 0.0068

A2-LiteESR: 0.0255

500 Epochs

Dry/Wet

cal.

Captured on

10 Comments

blancsuisse

Incredible ! Thank you !!!

chrislinus

These sound great, thank you! Could you please explain the coding of the tone names? For example: FR SD1 6505 1992 Ld - 2 - 4FB LL SM57b What does -2- 4FB LL/LR/UL/UR mean? Thank you!

wahrengravity

Thank u so much

hmohr

You're the man!

License: T3K

Users may download and use the data file in software and publish the resulting outputs without royalties or restrictions. However, they may not upload, republish, or distribute the data file without the author's permission.
